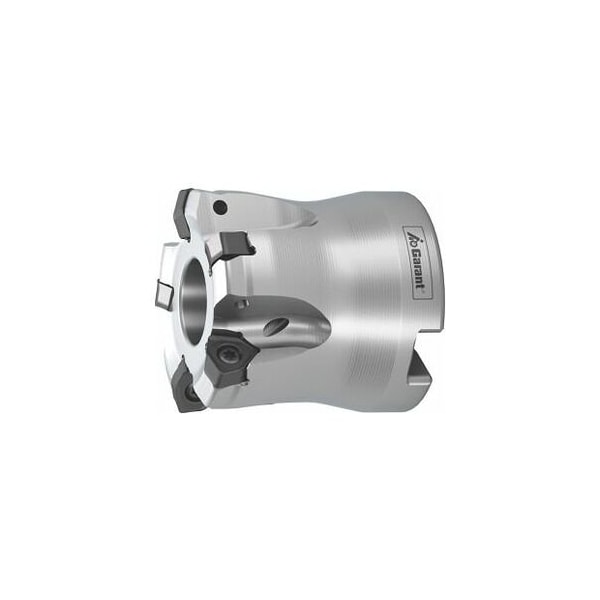

Power Q Double High Feed Rate Milling Cutter, with Bore, 50mm Diameter, 5 Inserts
Mfr # 213006 50/5
Zoro # G716121041
product price: $453.99
/ea
Free Shipping & Returns
Key Features
Overall Length
50 mm
Number of Teeth
5
Series
Power Q
Cutting Angle
15°
Cutting Dia.
50 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
213006 50/5
Zoro #
G716121041
UPC #
-
Country of Origin
Italy
Dimensions
Overall Length
50 mm
Cutting Dia.
50 mm
Ramping Length for αmax
37.55 mm
Diameter 3
40 mm
Mounting Bore Dia.
22 mm
Free length
50 mm
Details
Item
Copy mill
Number of Teeth
5
Series
Power Q
Cutting Angle
15°
Fz Helix
0.8
Machining Strategy
HPC
Ramping Angle
0.92°
Circular Interpolation Milling - Dmax
98 mm
Axial Rake Angle
-6°
Tool Exchange
PowerCard
Coolant Through
Yes
Circular interpolation milling ap
1.2 mm
Circular Interpolation Milling - Dmin
90 mm
Dia/No. of Cutting Edges
50 mm/5
Shank Type
with bore
Description
Version: Tool system with extremely stable embedding for the inserts for working to high process reliability. Tool geometries to reduce the cutting forces contribute significantly to reducing the load on the headstock. Spare part: Pack of insert screws No. 219799 7 10IP- 2.8Nm. Note: Use GARANT torque screwdriver TQ No. 211750 size 2.8 with bit No. 674252 size 10IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 5D3: 40 mm Overall length Ltot: 50 mm Mounting bore : 22 mm Circular interpolation millingDmin: 90 mm Circular interpolation millingDmax: 98 mm
