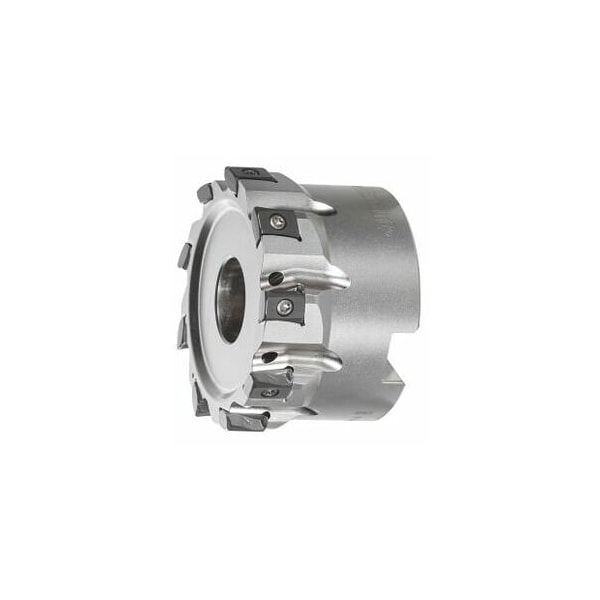

Power Tang Square Tangential Shoulder Mill, Close Pitch, with Bore, 63mm Diameter, 9 Inserts
Mfr # 215968 63/9
Zoro # G616121011
product price:Â $719.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
63 mm
Series
Power Tang
Overall Length
40 mm
Insert Screw
219868 2 (8IP; 1.2 Nm)
Cutting Angle
90°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215968 63/9
- Zoro #
- G616121011
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Cutting Dia.
- 63 mm
- Overall Length
- 40 mm
- Mounting Bore Dia.
- 27 mm
- Max. Cutting Depth
- 8 mm
- Free length
- 40 mm
- Shank Size
- 27
Details
- Item
- End / face mill
- Series
- Power Tang
- Insert Screw
- 219868 2 (8IP; 1.2 Nm)
- Cutting Angle
- 90°
- Shank Type
- With Bore
- Coolant Through
- Yes
- Dia/No. of Cutting Edges
- 63 mm/9
- Tool Exchange
- PowerCard
- Number of Teeth
- 9
- Milling Application
- Corner milling
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard maximum cutting depth ap max: 8 mm Overall length Ltot: 40 mm Mounting bore : 27 mm suitable indexable insert: LO.U0904.. Pack of insert screws: 219868 2 8IP- 1.2 Nm
