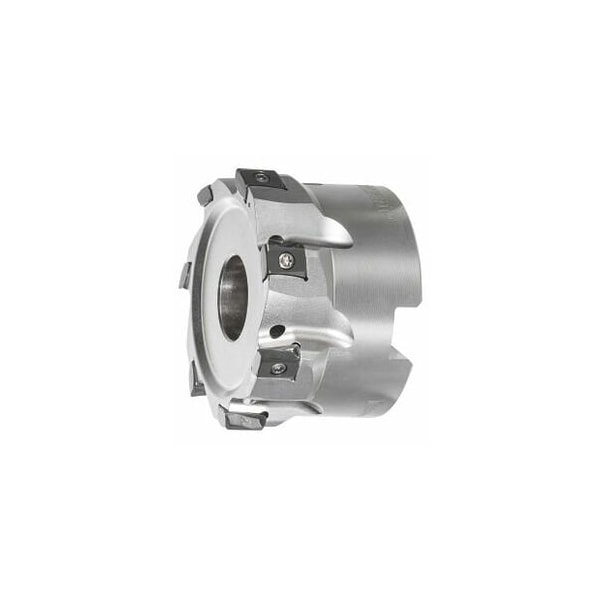

Power Tang Square Tangential Shoulder Mill, Wide Pitch, with Bore, 63mm Diameter, 7 Inserts
Mfr # 215966 63/7
Zoro # G616120922
product price: $738.99
/ea
Free Shipping & Returns
Key Features
Series
Power Tang
Overall Length
40 mm
Cutting Dia.
63 mm
Cutting Angle
90°
Insert Screw
219868 2 (8IP; 1.2 Nm)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215966 63/7
Zoro #
G616120922
UPC #
-
Country of Origin
Sweden
Dimensions
Overall Length
40 mm
Cutting Dia.
63 mm
Shank Size
27
Max. Cutting Depth
8 mm
Mounting Bore Dia.
27 mm
Free length
40 mm
Details
Series
Power Tang
Cutting Angle
90°
Insert Screw
219868 2 (8IP; 1.2 Nm)
Item
End / face mill
Number of Teeth
7
Milling Application
Corner milling
Tool Exchange
PowerCard
Coolant Through
Yes
Shank Type
With Bore
Dia/No. of Cutting Edges
63 mm/7
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard maximum cutting depth ap max: 8 mm Overall length Ltot: 40 mm Mounting bore : 27 mm suitable indexable insert: LO.U0904.. Pack of insert screws: 219868 2 8IP- 1.2 Nm
