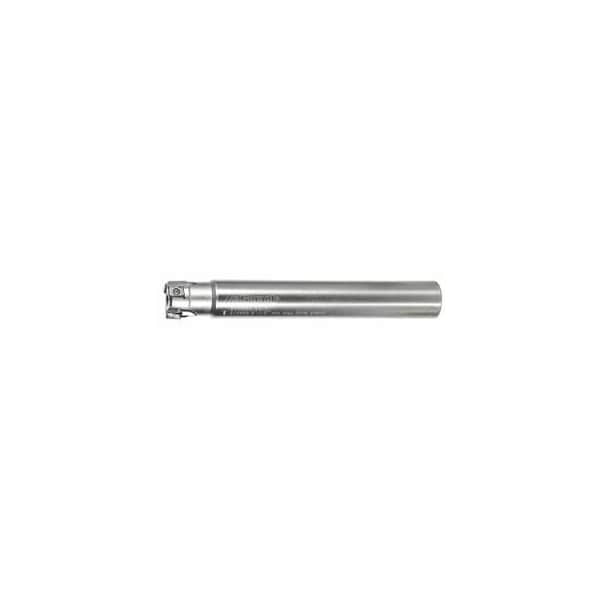

Power Tang Square Tangential Shoulder Mill, Wide Pitch, with Plain Shank, 25mm Diameter, 3 Inserts
- Mfr # 215952 25/3
- Zoro # G716120976
product price:Â
$
424.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
25 mm
Series
Power Tang
Overall Length
180 mm
Cutting Angle
90°
Insert Screw
219868 2 (8IP; 1.2 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 215952 25/3
- Zoro #
- G716120976
- UPC #
- -
- Country of Origin
- Sweden
- Item
- End / face mill
- Series
- Power Tang
- Cutting Angle
- 90°
- Insert Screw
- 219868 2 (8IP; 1.2 Nm)
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Shank Type
- Plain Shank
- Dia/No. of Cutting Edges
- 25 mm/3
- Number of Teeth
- 3
- Milling Application
- Corner milling
- Overhang
- 30 mm
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Cutting edgeDC: 25 mm Number of cutting edges Z: 3 maximum cutting depth ap max: 8 mm Overhang L1: 30 mm Overall length Ltot: 180 mm ShankDs h6: 25 mm
