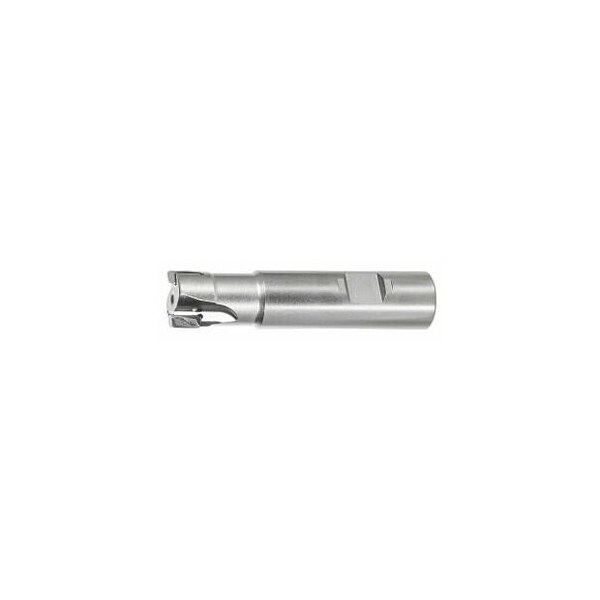

Power Tang Square Tangential Shoulder Mill, Wide Pitch, with Weldon Flat, 20mm Diameter, 2 Inserts
Mfr # 215950 20/2
Zoro # G016121031
product price:Â
$
386.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
20 mm
Series
Power Tang
Overall Length
101 mm
Insert Screw
219868 2 (8IP; 1.2 Nm)
Cutting Angle
90°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 215950 20/2
- Zoro #
- G016121031
- UPC #
- -
- Country of Origin
- Sweden
- Item
- End / face mill
- Series
- Power Tang
- Insert Screw
- 219868 2 (8IP; 1.2 Nm)
- Cutting Angle
- 90°
- Dia/No. of Cutting Edges
- 20 mm/2
- Tool Exchange
- PowerCard
- Milling Application
- Corner milling
- Overhang
- 30 mm
- Number of Teeth
- 2
- Shank Type
- Weldon Shank
- Coolant Through
- Yes
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Cutting edgeDC: 20 mm Number of cutting edges Z: 2 maximum cutting depth ap max: 8 mm Overhang L1: 30 mm Overall length Ltot: 101 mm ShankDs h6: 20 mm
