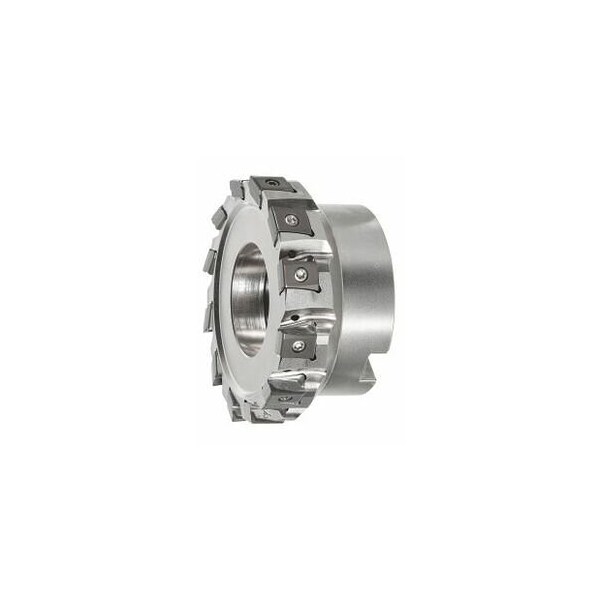

Power Tang Square Tangential Shoulder Mill, with Bore, 100mm Diameter, 12 Effective Inserts

  • Mfr # 215122 100/12

  • Zoro # G016121024

product price:  $1,153.99
/ea
Free Shipping & Returns

Key Features

Cutting Dia.
100 mm
Series
Power Tang
Overall Length
50 mm
Insert Screw
219882 (15IP; 3.0 Nm)
Cutting Angle
90°
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215122 100/12
Zoro #
G016121024
UPC #
-
Country of Origin
Sweden

Dimensions

Cutting Dia.
100 mm
Overall Length
50 mm
Free length
50 mm
Max. Cutting Depth
12 mm
Mounting Bore Dia.
32 mm

Details

Item
End / face mill
Series
Power Tang
Insert Screw
219882 (15IP; 3.0 Nm)
Cutting Angle
90°
Effective Dia/Overhang
100 mm/12 mm
Tool Exchange
PowerCard
Coolant Through
Yes
Number of Teeth
12
Shank Type
with bore
Milling Application
Corner milling

Description

Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard maximum cutting depth ap max: 12 mm Overall length Ltot: 50 mm Mounting bore : 32 mm suitable indexable insert: LO.. 130708 Pack of insert screws: 219882 15IP- 3.0 Nm
