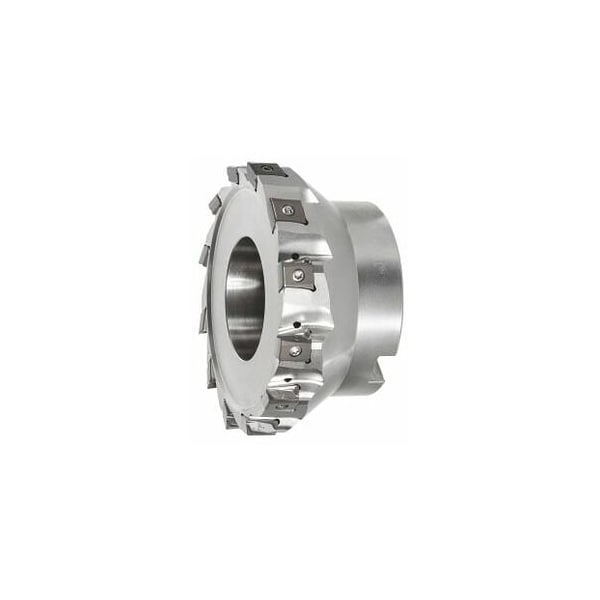

Power Tang Square Tangential Shoulder Mill, with Bore, 125mm Diameter, 12 Effective Inserts
Mfr # 215122 125/12
Zoro # G916120943
product price:Â $1,430.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
125 mm
Series
Power Tang
Overall Length
63 mm
Insert Screw
219882 (15IP; 3.0 Nm)
Cutting Angle
90°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215122 125/12
- Zoro #
- G916120943
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Cutting Dia.
- 125 mm
- Overall Length
- 63 mm
- Mounting Bore Dia.
- 40 mm
- Max. Cutting Depth
- 12 mm
- Free length
- 63 mm
Details
- Item
- End / face mill
- Series
- Power Tang
- Insert Screw
- 219882 (15IP; 3.0 Nm)
- Cutting Angle
- 90°
- Shank Type
- with bore
- Number of Teeth
- 12
- Tool Exchange
- PowerCard
- Milling Application
- Corner milling
- Effective Dia/Overhang
- 125 mm/12 mm
- Coolant Through
- Yes
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard maximum cutting depth ap max: 12 mm Overall length Ltot: 63 mm Mounting bore : 40 mm suitable indexable insert: LO.. 130708 Pack of insert screws: 219882 15IP- 3.0 Nm
