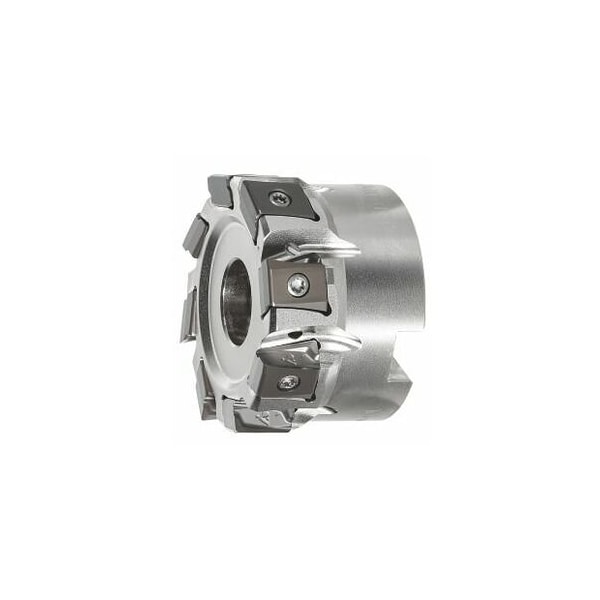

Power Tang Square Tangential Shoulder Mill, with Bore, 63mm Diameter, 8 Effective Inserts
Mfr # 215122 63/8
Zoro # G216120995
product price:Â $831.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
63 mm
Series
Power Tang
Overall Length
40 mm
Insert Screw
219882 (15IP; 3.0 Nm)
Cutting Angle
90°
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 215122 63/8
- Zoro #
- G216120995
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Cutting Dia.
- 63 mm
- Overall Length
- 40 mm
- Mounting Bore Dia.
- 27 mm
- Free length
- 40 mm
- Max. Cutting Depth
- 12 mm
Details
- Item
- End / face mill
- Series
- Power Tang
- Insert Screw
- 219882 (15IP; 3.0 Nm)
- Cutting Angle
- 90°
- Shank Type
- with bore
- Tool Exchange
- PowerCard
- Effective Dia/Overhang
- 63 mm/8 mm
- Number of Teeth
- 8
- Milling Application
- Corner milling
- Coolant Through
- Yes
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard maximum cutting depth ap max: 12 mm Overall length Ltot: 40 mm Mounting bore : 27 mm suitable indexable insert: LO.. 130708 Pack of insert screws: 219882 15IP- 3.0 Nm
