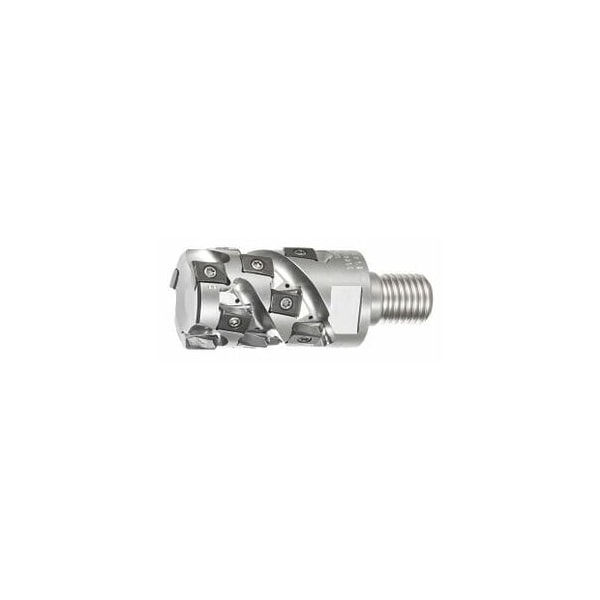

Power Tang Square Tangential Shoulder Mill, with Threaded Shank, 32mm Diameter, 3 Effective Teeth
Mfr # 215974 32/3
Zoro # G316121052
product price:Â $861.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
32 mm
Series
Power Tang
Overall Length
50 mm
Insert Screw
219868 2 (8IP; 1.2 Nm)
Cutting Angle
90
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 215974 32/3
- Zoro #
- G316121052
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Cutting Dia.
- 32 mm
- Overall Length
- 50 mm
- Shank Size
- M16
- Diameter 2
- 30 mm
- Max. Cutting Depth
- 39 mm
- Diameter 1
- 17 mm
Details
- Item
- End / face mill
- Series
- Power Tang
- Insert Screw
- 219868 2 (8IP; 1.2 Nm)
- Cutting Angle
- 90
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Number of Effective Inserts
- 3
- Shank Type
- With Threaded Shank
- Dia/Effective Teeth
- 32 mm/3
- Number of Indexable Inserts
- 15
- Mounting Thread
- M16
- Milling Application
- Corner milling
- Overhang
- 50 mm
Description
GARANT Power Tang 90 deg. tangential high-performance shoulder mill 32/3 mmNumber of effective inserts Zeff: 3 Number of indexable inserts: 15 maximum cutting depth ap max: 39 mm Overall length Ltot: 50 mmD1 h6: 17 mmD2: 30 mm
