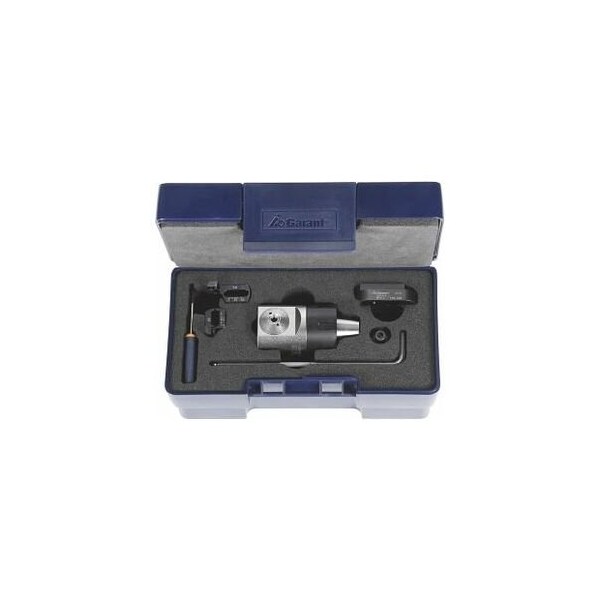

Precision Boring Set, with ER25 Connection, Boring Range: 39.9 mm - 100.1 mm (Discontinued)

For 0 range 39.9 100.1 mm. The modular ER precision boring tool can be adapted directly on to the ER25 collet chuck. Supplied in an ABS plastic case. Adjustment accuracy: 0.01 mm per graduation. Adjustment accuracy 0.002mm on the 0 via vernier. At the 0 position, without tool, balanced to Q2.5 / 6000 rpm. Max. speed 10-000 rpm. Cooling using a coolant nozzle, optimum coolant pressure 10 20 bar, minimum 5 bar. Slides radially adjustable with clamp. Supplied with: 1 precision boring head: ER25 1 each cartridge: No. 237517 size 1 for 0 39.9 57 mm No. 237517 size 2 for 0 57 100.1 mm 1 bridge: No. 237518 size 1 for 0 70.1 100.1 mm 1 flag wrench: No. 625920 size 8IP 1 hexagon L-wrench: No. 627310 size 4 2 socket-head screws: No. 237522 size M5 x 12 2 plain washers: No. 237523 2 disc springs: No. 237524 Spare part: Insert screw No. 239653 8IP, 1.28 Nm for tool cartridge No. 237517 size 1 and size 2. Note: Suitable indexable insert CCGT0602.. for instance No. 237695 / 237696 please order these separately. During the extraction cycle ensure cutting edge orientation ±20 Deg! Through-coolant: yes
