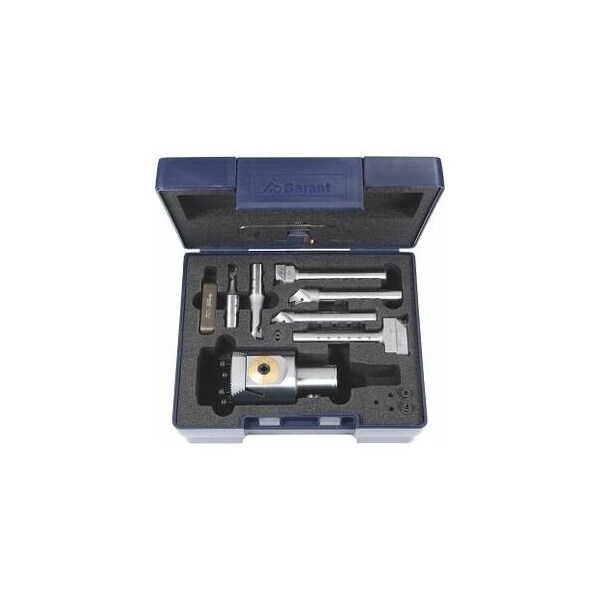

Precision Boring Set, with HW63 Connection, Boring Range: 9.75 mm - 164 mm

For 0 9.75 164 mm, with fine boring head No. 237546, boring bar and accessories in a case. Can be extended with the bridge No. 237560 to 0 320 mm. Adjustment accuracy 0.01 mm per graduation / with vernier 0.002 mm on the 0. Application: For boring bars with shank 0 16 mm and precision boring bridges. Boring bars / insert toolholder with suitable standard ISO insert type CC..0602. Supplied with: 1 fine boring head: No. 237546 HW63 1 each boring bar max. boring length: No. 237630 0 9.75 15.1 mm 30 mm, No. 237632 0 14.75 20.1 mm 51 mm, No. 237634 0 19.75 25.1 mm 72 mm, No. 237636 0 24.75 30.1 mm 82 mm, No. 237640 0 29.75 48.1 mm 85 mm, No. 237642 0 47.75 88.1 mm 85 mm. 1 bridge: No. 237647 for 0 extension of 86 164 mm. 1 insert toolholder for the bridge: No. 237564 06 1 insert: No. 260052 size CU7010 CCMT 060204 Spare part: Insert screw No. 219830. Recommendation: Best with indexable inserts No. 237695 and No. 237696. Through-coolant: yes
