Precision Boring Set, with SK40 Connection, Boring Range: 9.75 mm - 30.1 mm
Mfr # 237581 SK40
Zoro # G815380172
product price:Â
$
2,662.99
/ea
Free Shipping & Returns
Key Features
Overall Length
144 mm
Diameter
25 mm
Manufacturer Series
HOLEX Pro
Max. Adjustment Limit
0.3 mm
Coolant Through
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 237581 SK40
- Zoro #
- G815380172
- UPC #
- -
- Country of Origin
- Switzerland
Dimensions
- Overall Length
- 144 mm
- Diameter
- 25 mm
- Shank Length
- 56 mm
- Depth Limit (Indexable Drill)
- 3 x D
- Size
- 22.5
- Reach Length
- 69 mm
Details
- Item
- Indexable Drill
- Manufacturer Series
- HOLEX Pro
- Max. Adjustment Limit
- 0.3 mm
- Coolant Through
- Yes
- Shank Type
- ISO 9766
- Point Angle
- 180 Deg
- Overhang
- 88 mm
- Connection
- SK40
- Machining Strategy
- HPC
- No. of Cutting Edges
- 1
Description

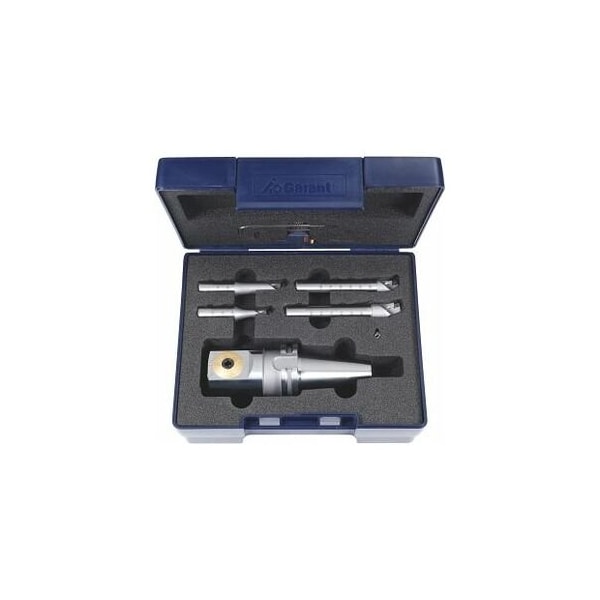

With fine boring head No. 237591, boring bars and accessories in a case. Adjustment accuracy 0.01 mm per graduation / with vernier 0.002 mm on the 0. 0 adjustment with minimum backlash. For 0 9.75 30.1 mm Application: For boring bars with shank 0 16 mm and precision boring bridges. With ISO indexable inserts type CC..0602... Supplied with: 1 fine boring head: No. 237591 SK40 1 each boring bar max. boring length: No. 237630 0 9.75 15.1 mm 30 mm, No. 237632 0 14.75 20.1 mm 51 mm, No. 237634 0 19.75 25.1 mm 72 mm, No. 237636 0 24.75 30.1 mm 82 mm. 1 insert toolholder for the bridge: No. 237564 06 1 insert: No. 260052 size CU7010 CCMT 060204 Spare part: Insert screw No. 219830. Recommendation: Best with indexable inserts No. 237695 and No. 237696. Through-coolant: yes
