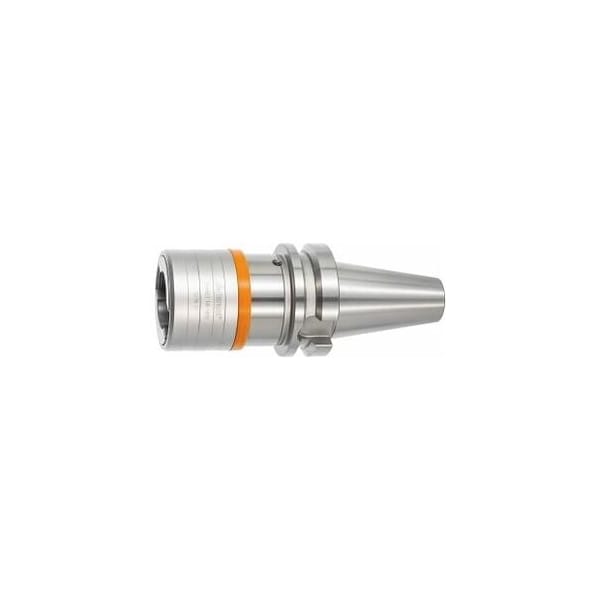

Quick-Change Tapping Chuck, BT 40, Tapping Range: M6-20
Mfr # 334663 M6-20
Zoro # G214776989
product price:Â $314.99
/ea
Free Shipping & Returns
Key Features
Tapping Range
M6 - M20
Length Compensation By Compression
12.5 mm
Internal Dia.
31 mm
Taper Size
BT40
Outside Dia.
55 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
334663 M6-20
Zoro #
G214776989
UPC #
-
Country of Origin
Italy
Dimensions
Length Compensation By Compression
12.5 mm
Internal Dia.
31 mm
Taper Size
BT40
Outside Dia.
55 mm
Length Compensation By Tension
12.5 mm
Details
Tapping Range
M6 - M20
Item
Tapping head
Projection
93 mm
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Arbor standard: ISO 7388-2 Length compensation by compression: 12.5 mm Length compensation by tension: 12.5 mm External Dia D: 55 mm Internal Dia D1: 31 mm Overhang dimension A: 93 mm
