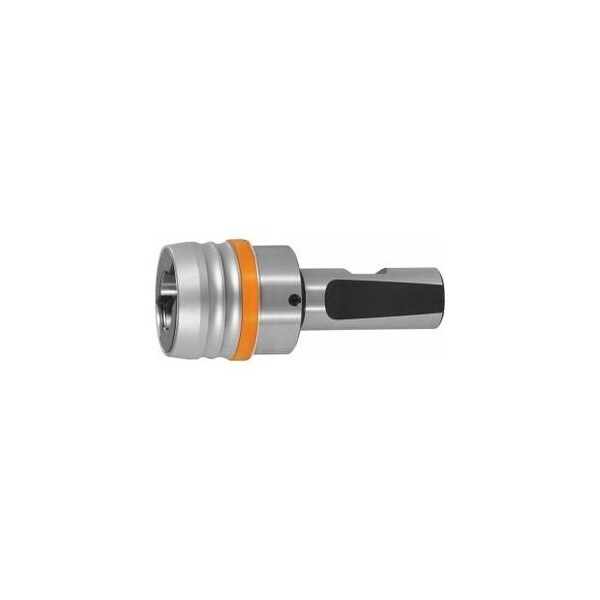

Quick-Change Tapping Chuck, Shank Diameter: 20 mm, Tapping Range: M3-12
Mfr # 334620 M3-12
Zoro # G314777039
product price: $291.99
/ea
Free Shipping & Returns
Key Features
Tapping Range
M3 − M12
Length Compensation By Tension
7.5 mm
Projection
39 mm
Length Compensation By Compression
7.5 mm
Outside Dia.
38 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
334620 M3-12
Zoro #
G314777039
UPC #
-
Country of Origin
Italy
Dimensions
Length Compensation By Tension
7.5 mm
Length Compensation By Compression
7.5 mm
Outside Dia.
38 mm
Internal Dia.
19 mm
Shank Dia.
20 mm
Details
Tapping Range
M3 − M12
Projection
39 mm
Item
Tapping head
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. With ball bearing-mounted sleeve for smooth no-play length compensation. Parallel shank to DIN 1835 Form B and E. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Length compensation by compression: 7.5 mm Length compensation by tension: 7.5 mm External Dia D: 38 mm Internal Dia D1: 19 mm Overhang dimension A: 39 mm
