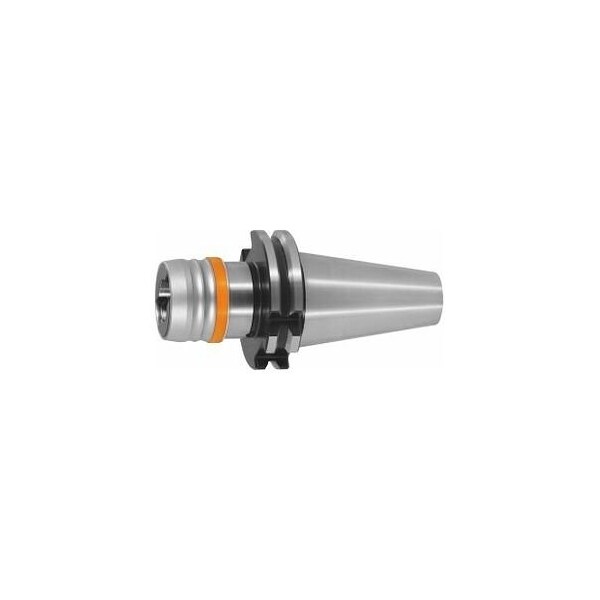

Quick-Change Tapping Chuck, SK 40, Tapping Range: M14-33
Mfr # 334630 M14-33
Zoro # G314776971
product price:Â $729.99
/ea
Free Shipping & Returns
Key Features
Taper Size
SK40
Outside Dia.
79 mm
Tapping Range
M14 - M33
Length Compensation By Compression
24 mm
Length Compensation By Tension
24 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 334630 M14-33
- Zoro #
- G314776971
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Taper Size
- SK40
- Outside Dia.
- 79 mm
- Length Compensation By Compression
- 24 mm
- Length Compensation By Tension
- 24 mm
- Internal Dia.
- 48 mm
Details
- Item
- Tapping head
- Tapping Range
- M14 - M33
- Projection
- 138 mm
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. With ball bearing-mounted sleeve for smooth no-play length compensation. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Arbor standard: ISO 7388-1 Length compensation by compression: 24 mm Length compensation by tension: 24 mm External Dia D: 79 mm Internal Dia D1: 48 mm Overhang dimension A: 138 mm
