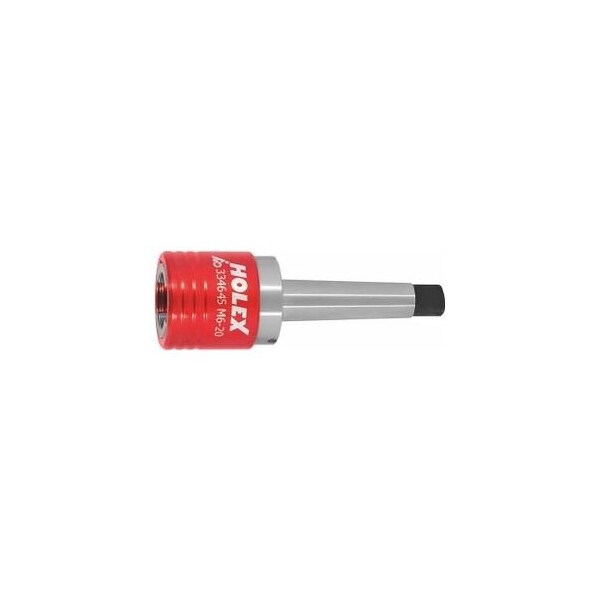

Quick-Change Tapping Chuck, MT3, Tapping Range: M6-20
Mfr # 334645 M6-20
Zoro # G514776979
product price:Â $256.99
/ea
Free Shipping & Returns
Key Features
Projection
70 mm
Length Compensation By Tension
12.5 mm
Internal Dia.
31 mm
Taper Size
MT3
Tapping Range
M6 - M20
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
334645 M6-20
Zoro #
G514776979
UPC #
-
Country of Origin
India
Dimensions
Length Compensation By Tension
12.5 mm
Internal Dia.
31 mm
Taper Size
MT3
Length Compensation By Compression
12.5 mm
Outside Dia.
55 mm
Details
Projection
70 mm
Item
Tapping head
Tapping Range
M6 - M20
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. Morse taper DIN 228 B. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: For quick-change tapping collets see No. 335420 335660. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Length compensation by compression: 12.5 mm Length compensation by tension: 12.5 mm External Dia D: 55 mm Internal Dia D1: 31 mm Overhang dimension A: 70 mm
