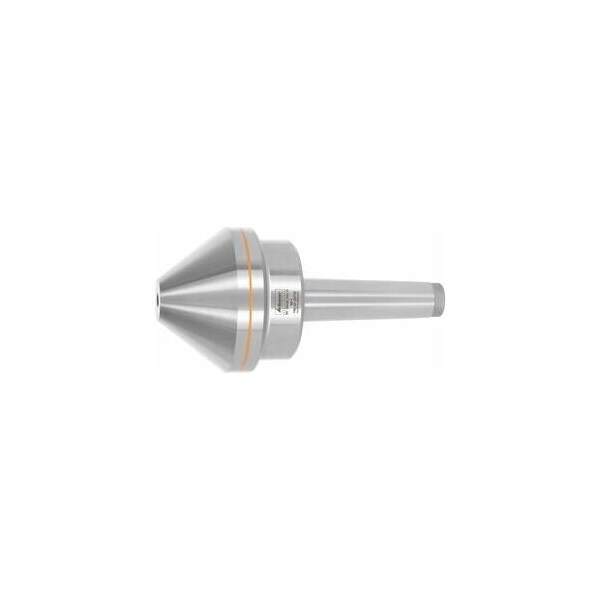

Revolving Centering Taper, Truncated Cone, Diameter/Morse Taper: 100/4

  • Mfr # 323000 100/4
  • Zoro # G214832142
product price:
$
530.99
/ea
Free Shipping & Returns

Key Features

Smallest Dia.
30 mm
Morse Taper
4
Max. Speed
3000 min-1
Maximum Radial Run-Out
0.005 mm
For Workpiece Weight
300 kg
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
323000 100/4
Zoro #
G214832142
UPC #
-
Country of Origin
Germany
Item
Centring drill
Morse Taper
4
Max. Speed
3000 min-1
Maximum Radial Run-Out
0.005 mm
For Workpiece Weight
300 kg
Taper Angle
75 Deg

Dimensions

Smallest Dia.
30 mm
Head Length
101 mm

Description

Centering taper with truncated cone. Particularly sturdy design with oversize bearings. The bearings have a special lubricant and require no maintenance. The centering taper and tapered arbor are made of high quality material, through hardened and finish ground. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Application: For machining hollow parts, tubes etc. Particularly suitable for heavy machining where at the same time high accuracy is required. smallest Dia: 30 mm Head length L: 101 mm maximum radial run-out: 0.005 mm maximum speed: 3000 min-1 for workpiece weight at D: 650 kg for workpiece weight at D1: 300 kg
