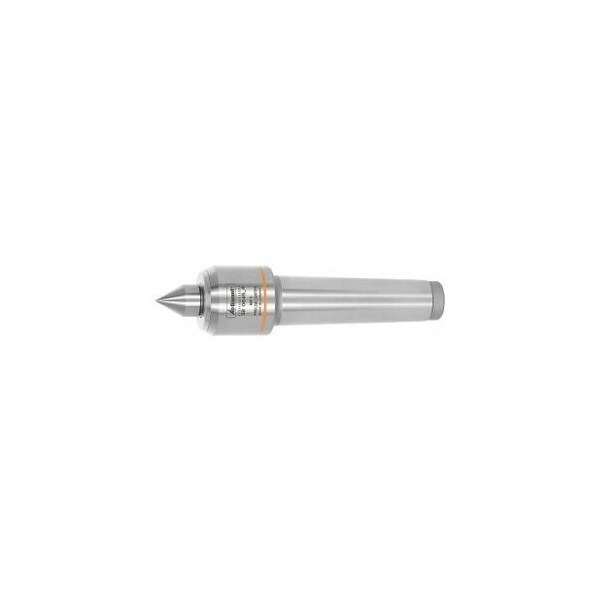

Revolving Lathe Center 60 Deg, Morse Taper: 2

Lightweight version with slim body. Precision roller bearings for high concentricity. Maintenance-free due to lifetime lubrication. Special seal prevents ingress of dirt and coolant. MT shank hardened and ground. Point angle 60 Deg. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Application: Mainly used for machining small and smallest parts on all types of lathes. Body Dia D: 32 mm Reach B: 64 mm largest Center point Dia 60 Deg A: 15 mm maximum radial run-out: 0.005 mm Center point length C: 19.5 mm maximum speed: 6000 min-1
