Shop GARANT

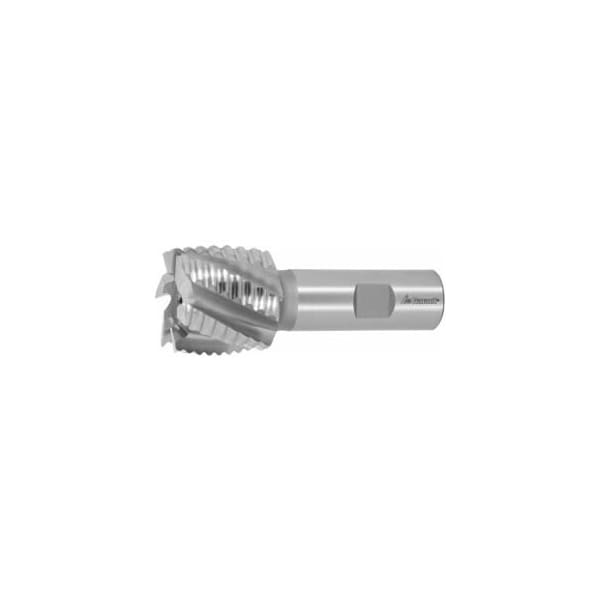

Roughing End Mill, Uncoated, 40 mm

  • Mfr # 192970 40

  • Zoro # G614378738

product price:
$
322.99
/ea
Free Shipping & Returns

Key Features

Milling Diameter
40 mm
Length of Cut
32 mm
Overall Length
95 mm
Shank Dia.
25 mm
Helix Angle
30 deg
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
192970 40
Zoro #
G614378738
UPC #
-
Country of Origin
Austria

Dimensions

Milling Diameter
40 mm
Length of Cut
32 mm
Overall Length
95 mm
Shank Dia.
25 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
20 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
k12
Maximum Cutting Depth Ap Max When Side Milling
32 mm

Details

Helix Angle
30 deg
Shank Type
DIN 1835 B to h6
End Mill Material
High Speed Steel
Coolant Through
no
Number of Flutes
6
Color Ring
without
Milling profile
NR
Shank Tolerance
h6
Corner Chamfer Angle
90 Degrees
Correction Factor Fz
1.25
Cutting Direction
horizontal and oblique
End Mill Style
Square
Type of Product
End Mill
Finish
uncoated

Description

Relief ground knuckle form profile. End face recessed. Wide lands permit frequent regrinding without losing the profile. Advantage: For roughing at low cutting depths predominantly face milling. Very reliable due to lower load on the machine spindle.
