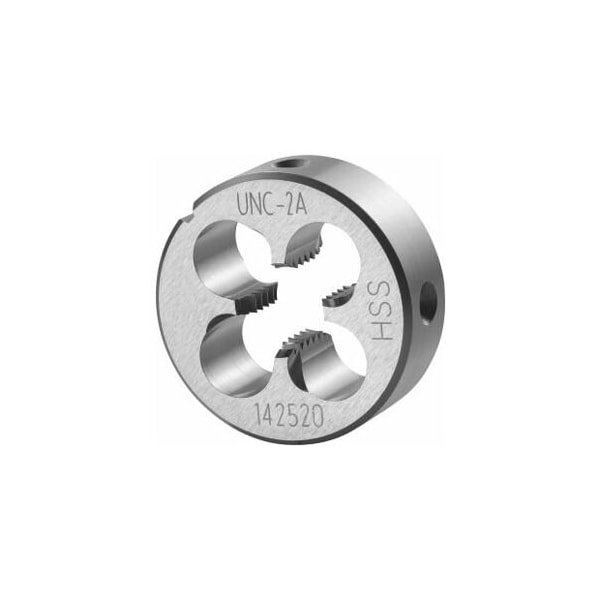

Round Die, HSS, 1-3/8in-6
Mfr # 142520 1.3/8-6
Zoro # G714389559
product price: $224.99
/ea
Free Shipping & Returns
Key Features
Thread Type
UNC
Die Material
HSS
Size
1.3/8-6 mm
Standards
EN 22568
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
142520 1.3/8-6
Zoro #
G714389559
UPC #
-
Country of Origin
Germany
Dimensions
Die Thread Size
1-3/8"-6
Size
1.3/8-6 mm
Details
Item
Die
Thread Type
UNC
Die Material
HSS
Standards
EN 22568
Description
Closed, pre-slit form, with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Application: For UNC uniform coarse threads ASME B1.1. Tolerance class: 2A Threads per inch: 6 Thread Dia. 34.93 mm External Dia. 65 mm Height: 25 mm
