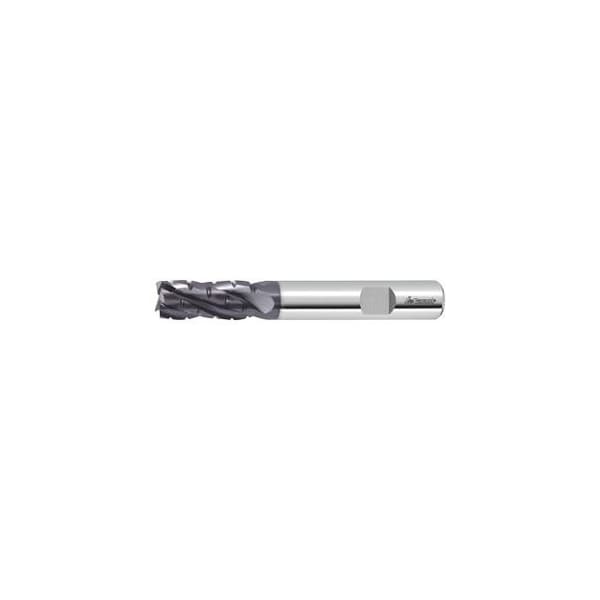

Semi-Roughing End Mill, TiAlN Coated, 9 mm
Mfr # 191720 9
Zoro # G714375552
product price:Â $61.85
/eaKey Features
Milling Diameter
9 mm
Length of Cut
19 mm
Overall Length
69 mm
Shank Dia.
10 mm
Helix Angle
27-30 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 191720 9
- Zoro #
- G714375552
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Milling Diameter
- 9 mm
- Length of Cut
- 19 mm
- Overall Length
- 69 mm
- Shank Dia.
- 10 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 9 mm
- Tolerance Nominal Diameter
- k12
- Maximum Cutting Depth Ap Max When Side Milling
- 19 mm
- Min. Cutting Depth
- 0.01 mm
Details
- Helix Angle
- 27-30 Degrees
- Shank Type
- DIN 1835 B to h6
- End Mill Material
- High Speed Steel
- End Mill Style
- Square
- Shank Tolerance
- h6
- Color Ring
- without
- Correction Factor Fz
- 1.25
- Standard
- DIN 844 B
- Milling profile
- NF
- Coolant Through
- no
- Corner Chamfer Angle
- 90 Degrees
- Type of Product
- End Mill
- Cutting Direction
- horizontal and oblique
- Number of Flutes
- 4
- Finish
- TiAlN
Description
Size 10 30 Center cutting teeth for plunging. or a considerable performance improvement with special ground chip breaker flutes. Advantage: The chip breaker flutes facilitate chip evacuation and at the same time ensure a good component surface finish.
