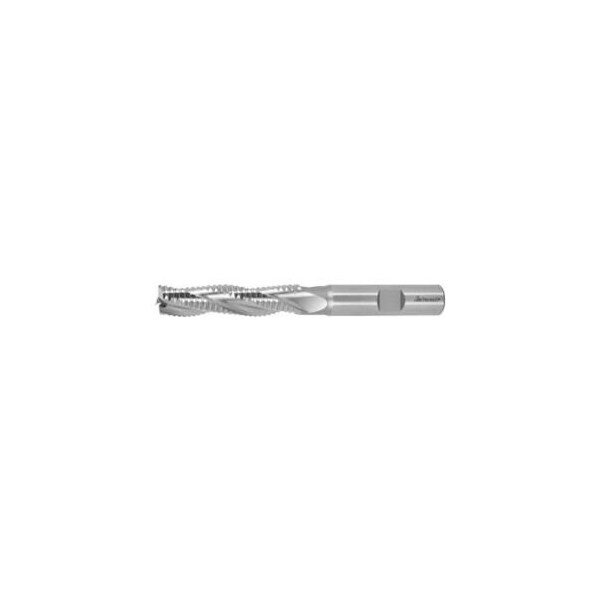

Semi-Roughing End Mill, Uncoated, 10 mm

  • Mfr # 191700 10

  • Zoro # G414375395

product price:  $56.15
/ea

Key Features

Milling Diameter
10 mm
Length of Cut
45 mm
Overall Length
95 mm
Shank Dia.
10 mm
Helix Angle
25 deg
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
191700 10
Zoro #
G414375395
UPC #
-
Country of Origin
Japan

Dimensions

Milling Diameter
10 mm
Length of Cut
45 mm
Overall Length
95 mm
Shank Dia.
10 mm
Min. Cutting Depth
0.05 mm
Corner Chamfer Width at 45°
0.3 mm
Tolerance Nominal Diameter
k10
Maximum Cutting Depth Ap Max When Slot Milling From Solid
5 mm
Maximum Cutting Depth Ap Max When Side Milling
45 mm

Details

Helix Angle
25 deg
Shank Type
DIN 1835 B to h6
End Mill Material
High Speed Steel
Correction Factor Fz
1.25
Corner Chamfer Angle
45 Degrees
Type of Product
End Mill
Milling profile
NF
Coolant Through
no
Shank Tolerance
h6
Color Ring
without
Finish
uncoated
Number of Flutes
3
End Mill Style
Chamfer
Standard
DIN 844 B
Cutting Direction
horizontal, oblique and vertical

Description

Relief ground truncated-type roughing profile. Center cutting teeth for plunging. The wide tooth lands can be re-ground frequently without losing the profile. Universal cutter for profile milling or for plunging. Advantage: Compared to multi-flute cutters, better chip evacuation due to larger flutes.
