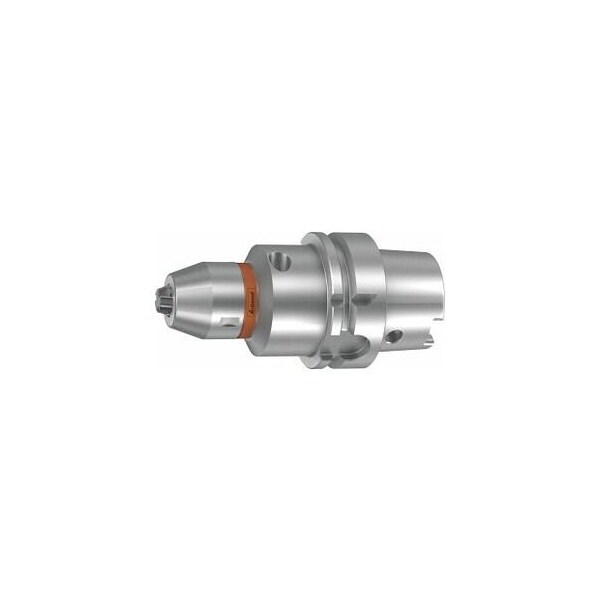

Short Drill Chuck, Form A, HSK-A 63, Clamping Range: 0.3-8mm
Mfr # 307725 0,3-8
Zoro # G114773439
product price: $585.99
/ea
Free Shipping & Returns
Key Features
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 20 µm
Type
slim
Shape
A
Taper Size
HSK63A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
307725 0,3-8
Zoro #
G114773439
UPC #
-
Country of Origin
Spain
Dimensions
Taper Size
HSK63A
Outside Dia.
35 mm
Clamping Dia.
0.3 mm
Details
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 20 µm
Item
Short drill chuck
Type
slim
Shape
A
Coolant Through
Yes, With Max. 50 Bar
Max. Tightening Torque
≤ 14 N·m
Spare Torx Chuck Key No. 625220
TX25
Projection
93 mm
Description
For clockwise and anticlockwise rotation. With RFID/Balluffchip bore. With through coolant feed up to max. 50 bar. Concentricity 20 um. Slim design. Specific coolant transfer to tools with IC. Optimum holding torques at the tool. Supplied with: Clamping wrench with T-handle. Optional extras: Socket wrench No. 309890. Coolant tube No. 309880. Type: slim Overhang dimension A: 93 mm External Dia D: 35 mm Spare Torx chuck key No. 625220: TX25
