Shop GARANT

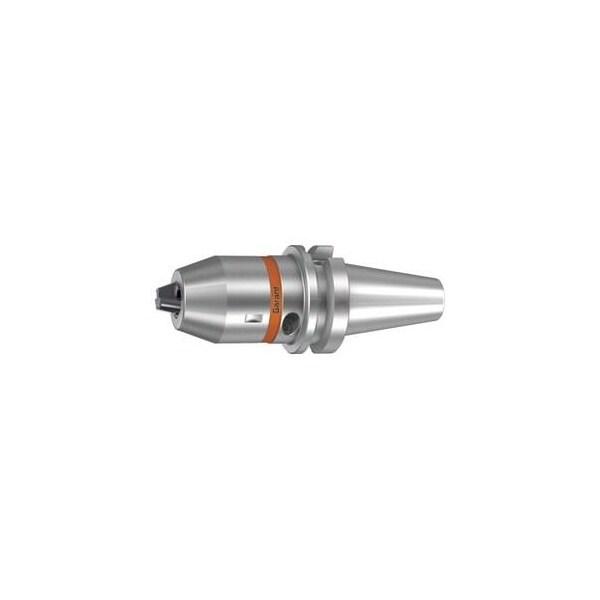

Short Drill Chuck Form AD, BT 40, Clamping Range: 1-16mm

  • Mfr # 303171 1-16

  • Zoro # G214775029

product price:  $509.99
/ea
Free Shipping & Returns

Key Features

Taper Size
BT40
Shape
AD
Spare Torx Chuck Key No. 625220
TX25
Max. Tightening Torque
≤ 14 N·m
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
303171 1-16
Zoro #
G214775029
UPC #
-
Country of Origin
Spain

Dimensions

Taper Size
BT40
Outside Dia.
50 mm
Clamping Dia.
1 mm

Details

Item
Short drill chuck
Shape
AD
Spare Torx Chuck Key No. 625220
TX25
Max. Tightening Torque
≤ 14 N·m
Balance Quality
G 2.5 at 25,000 rpm
Projection
95 mm
Coolant Through
Yes, With Max. 50 Bar
Concentricity
≤ 20 µm

Description

For clockwise and anticlockwise rotation. Concentricity 20 um. Slim design. Specific coolant transfer to tools with IC. Optimum holding torques at the tool. With through coolant feed up to max. 50 bar. Supplied with: Clamping wrench. Optional extras: Pull studs PS No. 308760 308806. Pull stud wrenches No. 308820, 308835. Overhang dimension A: 95 mm External Dia D: 50 mm Spare Torx chuck key No. 625220: TX25
