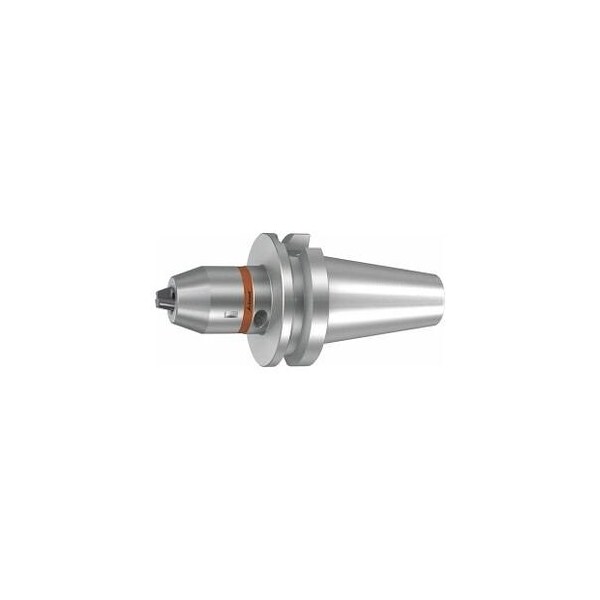

Short Drill Chuck Form AD, BT 50, Clamping Range: 1-16mm

  • Mfr # 303172 1-16

  • Zoro # G814775009

product price:  $644.99
/ea
Free Shipping & Returns

Key Features

Projection
106 mm
Spare Torx Chuck Key No. 625220
TX25
Outside Dia.
50 mm
Shape
AD
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
303172 1-16
Zoro #
G814775009
UPC #
-
Country of Origin
Spain

Dimensions

Outside Dia.
50 mm
Clamping Dia.
1 mm
Taper Size
BT50

Details

Item
Short drill chuck
Projection
106 mm
Spare Torx Chuck Key No. 625220
TX25
Shape
AD
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 20 µm
Max. Tightening Torque
≤ 14 N·m
Coolant Through
Yes, With Max. 50 Bar

Description

For clockwise and anticlockwise rotation. Concentricity 20 um. Slim design. Specific coolant transfer to tools with IC. Optimum holding torques at the tool. With through coolant feed up to max. 50 bar. Supplied with: Clamping wrench. Optional extras: Pull studs PS No. 308760 308806. Pull stud wrenches No. 308820, 308835. Overhang dimension A: 106 mm External Dia D: 50 mm Spare Torx chuck key No. 625220: TX25

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
