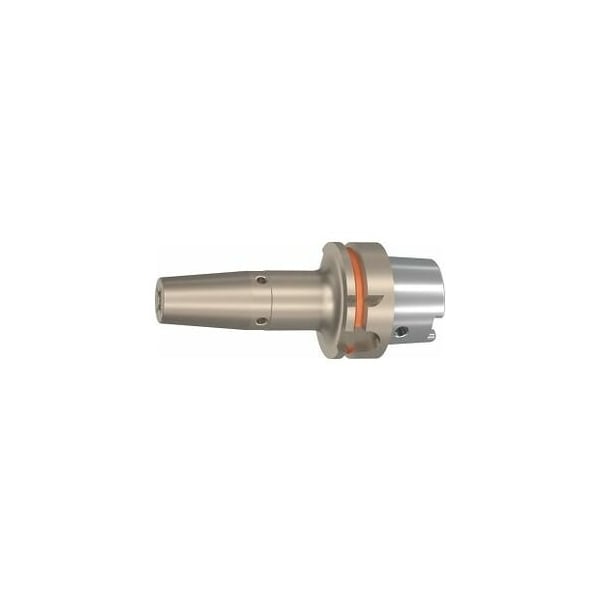

Shrink-fit Holder, Cooling Channels, Nickel-Plated, HSK-A 63, Projection: 120, Clamping Range: 6mm
Mfr # 308194 6
Zoro # G414774884
product price:Â
$
390.99
/ea
Free Shipping & Returns
Key Features
Taper Size
HSK63A
Projection
120 mm
Dia.
21 mm
Concentricity
≤ 3 µm
Clamping Dia.
6 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 308194 6
- Zoro #
- G414774884
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- HSK63A
- Dia.
- 21 mm
- Clamping Dia.
- 6 mm
- External Dia.
- 27 mm
Details
- Item
- Shrink-fit chuck
- Projection
- 120 mm
- Concentricity
- ≤ 3 µm
- Shape
- A
- Balance Quality
- G 2.5 at 25,000 rpm
- Cooling Channel Bore
- lockable
Description
High-temperature steel. Sizes 3 5 for carbide, from size 6 for HSS and carbide. With RFID/Balluffchip bore. Premium Nickel plated version with 4 pluggable cooling channel bores. Integral tool length adjustment adjustment track 10 mm. Application: For holding end mills and drills with parallel shank to h6 tolerance. Suitable for inductive, contact and hot air shrink-fit units. Supplied with: For chucks with length adjustment including a length adjustment screw from clamping Dia D1 6 mm. 4 x M3 nozzle screws. Optional extras: Coolant tube No. 309880, socket wrench No. 309890, Shrink-fit holder extension No. 302410 302416, shrink-fit units No. 354210 354450, balancing screw set No. 309906 180. Cooling channel bore: lockable Clamping Dia D1: 6 mm Overhang dimension A: 120 mm External Dia D: 27 mm Dia D2: 21 mm
