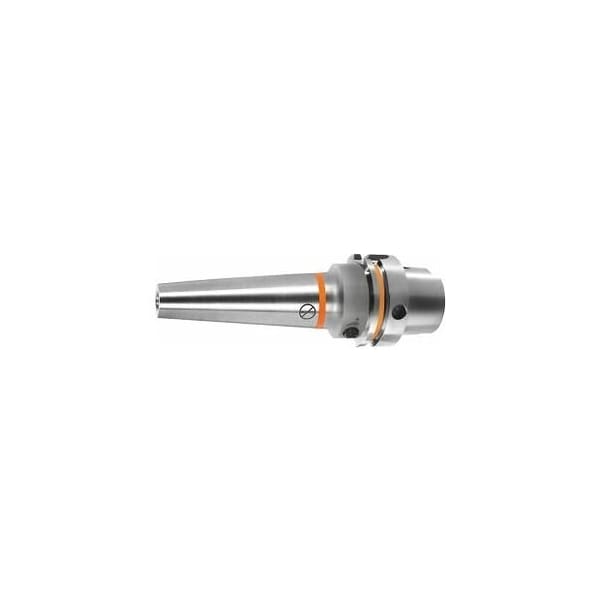

Slim Hydraulic Chuck, HSK-A 63, Projection: 160, Clamping Diameter: 6mm
Mfr # 307536 6
Zoro # G714777110
product price:Â
$
1,026.99
/ea
Free Shipping & Returns
Key Features
Balluffchip Bore
Yes
Projection
160 mm
Shape
A
Clamping Dia.
6 mm
Balance Quality
G 2.5 at 25,000 rpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 307536 6
- Zoro #
- G714777110
- UPC #
- -
- Country of Origin
- Germany
- Balluffchip Bore
- Yes
- Projection
- 160 mm
- Shape
- A
- Item
- Hydraulic clamping chuck
- Balance Quality
- G 2.5 at 25,000 rpm
- Concentricity
- ≤ 3 µm
Description
Extremely slim design Extra Slim-contour. With RFID/Balluffchip bore. Axial length adjustment possible. Shanks hard turned. Reducing adapters can be used. Advantage: Temperature-resistant due to completely enclosed system, i.e. no soldered pressure chambers. Ideal damping characteristics. High transmissible torques, providing high process reliability. Application: Especially in operations in toolmaking and mould making. Wherever reduced interference contours are required. For drilling, reaming and milling For clamping tools with shank tolerance h6. Supplied with: Hexagon socket drive with T-handle. Optional extras: Reducing sleeves No. 302135 302165. Clamping Dia D1: 6 mm Overhang dimension A: 160 mm Dia D2: 16 mm Dia D3: 33.5 mm L2: 111 mm
