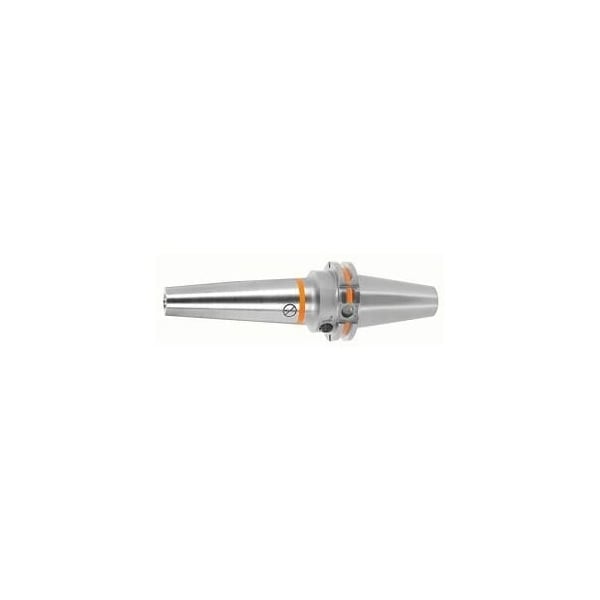

Slim Hydraulic Chuck, SK 40, Projection: 160, Clamping Range: 8mm
Mfr # 302095 8
Zoro # G014773744
product price: $964.99
/ea
Free Shipping & Returns
Key Features
Balluffchip Bore
Yes
Balance Quality
G 2.5 at 25,000 rpm
Shape
ADB
Outside Dia.
49.5 mm
Concentricity
≤ 3 µm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
302095 8
Zoro #
G014773744
UPC #
-
Country of Origin
Germany
Dimensions
Outside Dia.
49.5 mm
Taper Size
SK40
Clamping Dia.
8 mm
Details
Balluffchip Bore
Yes
Item
Hydraulic clamping chuck
Balance Quality
G 2.5 at 25,000 rpm
Shape
ADB
Concentricity
≤ 3 µm
Projection
160 mm
Standards
ISO 7388-1
Description
Extremely slim design Extra Slim contour Processed surface structure. With RFID/Balluffchip bore. Axial length adjustment possible. Shanks hard turned. Reducing adapters can be used. Application: Especially for tool and mould making. Wherever reduced interference contours are required. For drilling, reaming, and milling. For clamping tools with shank tolerance h6. Supplied with: Hexagon socket drive with T-handle. Optional extras: Pull studs AB No. 308600 308806, AB pull stud wrenches No. 308820 / 308835, Reducing adapters No. 302135 302187. Machining strategy: HPC Clamping Dia D1: 8 mm Overhang dimension A: 160 mm Dia D2: 18 mm Dia D3: 35.4 mm External Dia D: 49.5 mm L2: 119.5 mm
