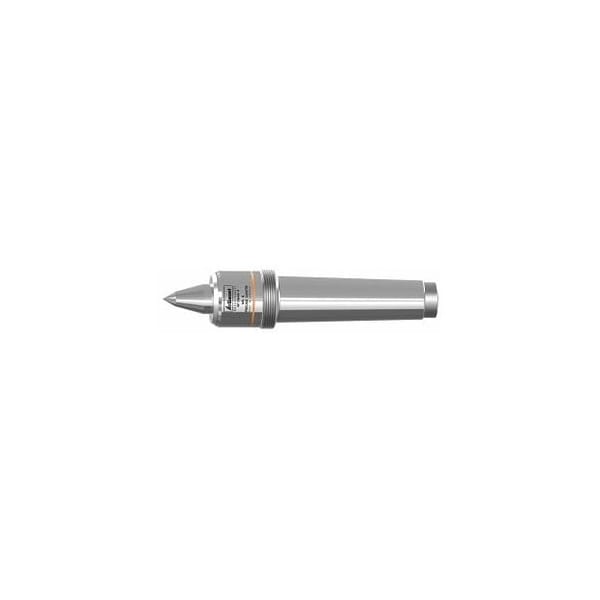

SlimLine Revolving Lathe Center, 60 Deg/30 Deg, Morse Taper: 2

Precision version with additional stiffness in the bearings. Precision roller bearings for high concentricity. Maintenance-free due to lifetime lubrication. Special seal prevents ingress of dirt and coolant. MT shank hardened and ground. With extended Center, point angle 60 Deg / 30 Deg. With push-off thread and push-off nut. outstandingly suitable for cutting threads and splining. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Advantage: Push-off nut can be removed forwards thus eliminating any obstruction to the machining process. Application: Machining small and very small parts such as thread machining with optimum access to the flat face. Supplied with: Including draw-off nut. Body Dia D: 26 mm Overall length L: 123 mm Reach B: 59 mm largest Center point Dia 60 Deg A: 6 mm largest Center point Dia 30 Deg A: 12 mm maximum radial run-out: 0.005 mm
