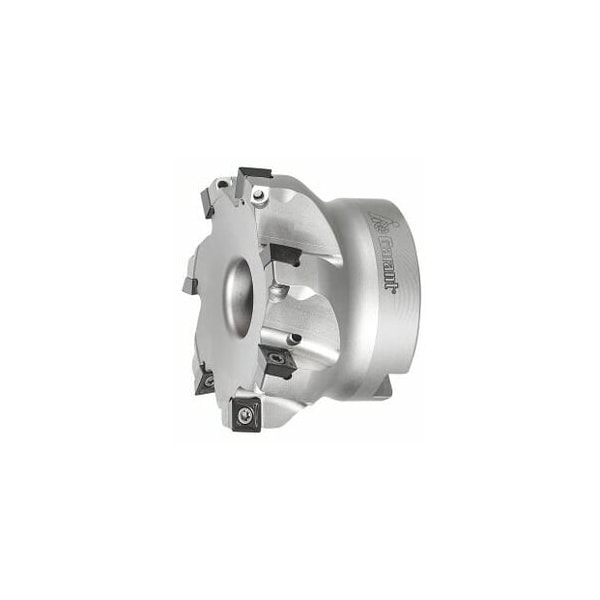

Softcut HSI Milling Cutter, Close Pitch, with Bore, 63mm Diameter, 7 Inserts
Mfr # 214908 63/7
Zoro # G116121092
product price: $758.99
/ea
Free Shipping & Returns
Key Features
Overall Length
40 mm
Series
Softcut®
Number of Teeth
7
Cutting Angle
90°
Cutting Dia.
63 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
214908 63/7
Zoro #
G116121092
UPC #
-
Country of Origin
Italy
Dimensions
Overall Length
40 mm
Cutting Dia.
63 mm
Mounting Bore Dia.
22 mm
Max. Cutting Depth
6 mm
Free length
40 mm
Details
Item
End / face mill
Series
Softcut®
Number of Teeth
7
Cutting Angle
90°
Insert Screw
219863 (8IP; 2.2 Nm)
Dia/No. of Cutting Edges
63 mm/7
Shank Type
with bore
Coolant Through
Yes
Milling Application
Corner milling
Tool Exchange
PowerCard
Description
Version: Wear-resistant heat-treated steel with corrosion-inhibiting coating. Precise indexable insert seating by use of appropriate torque. Wide and close tooth pitches for individual milling strategies. Application: Particularly suitable for machines with lower drive power and for machining at greater depths and small entry diameters. Note: To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 8IP. For exact 90 deg. corners- select ap = 6 mm. Tool exchange: PowerCard maximum cutting depth ap max: 6 mm Overall length Ltot: 40 mm Mounting bore : 22 mm suitable indexable insert: SO.. 0836.. Pack of insert screws: 219863 8IP- 2.2 Nm
