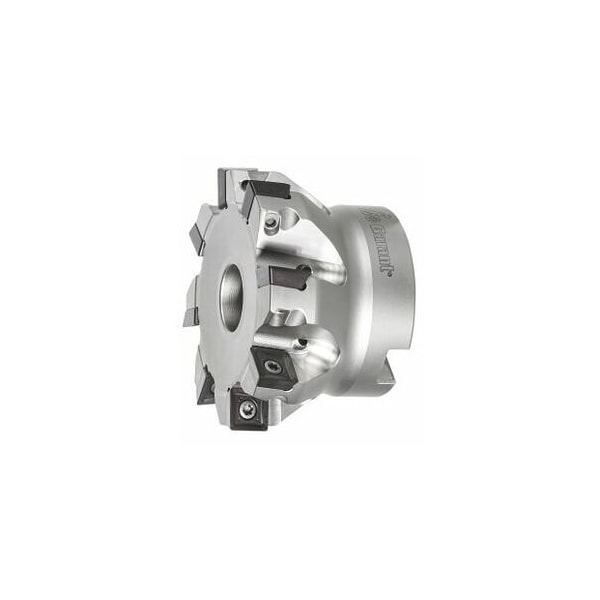

Softcut HSI Milling Cutter, Close Pitch, with Bore, 80mm Diameter, 8 Inserts

  • Mfr # 214857 80/8
  • Zoro # G116121184
product price:
$
938.99
/ea
Free Shipping & Returns

Key Features

Series
Softcut®
Cutting Angle
90°
Cutting Dia.
80 mm
Number of Teeth
8
Overall Length
50 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
214857 80/8
Zoro #
G116121184
UPC #
-
Country of Origin
Italy
Item
End / face mill
Series
Softcut®
Cutting Angle
90°
Number of Teeth
8
Insert Screw
219833 (15IP; 3.0 Nm)
Tool Exchange
PowerCard
Dia/No. of Cutting Edges
80 mm/8
Coolant Through
Yes
Shank Type
with bore
Milling Application
End milling

Dimensions

Cutting Dia.
80 mm
Overall Length
50 mm
Max. Cutting Depth
10 mm
Free length
50 mm
Mounting Bore Dia.
27 mm

Description

Version: Individual tool geometry ensures very smooth cutting. Exceptionally sturdy insert design for best feed rates. Indexable inserts are secured by special screws with high shear resistance. Application: For outstanding surface quality. Burr-free milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. For ae > 0.5xD- reduce ap max to 6 mm. For exact 90 deg. corners- select ap = 8 mm. To use all 4 cutters- the insert must always be turned in the direction shown anticlockwise. Tool exchange: PowerCard maximum cutting depth ap max: 10 mm Overall length Ltot: 50 mm Mounting bore : 27 mm suitable indexable insert: SO.. 1205.. Pack of insert screws: 219833 15IP- 3.0 Nm
