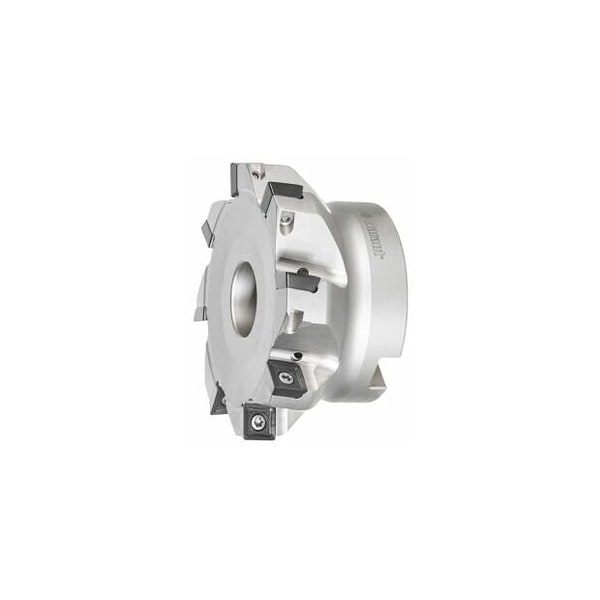

Softcut HSI Milling Cutter, Wide Pitch, with Bore, 100mm Diameter, 8 Inserts
Mfr # 214855 100/8
Zoro # G916121100
product price: $929.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Angle
90°
Insert Screw
219833 (15IP; 3.0 Nm)
Cutting Dia.
100 mm
Number of Teeth
8
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
214855 100/8
Zoro #
G916121100
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
100 mm
Overall Length
50 mm
Free length
50 mm
Max. Cutting Depth
10 mm
Mounting Bore Dia.
32 mm
Details
Item
End / face mill
Series
Softcut®
Cutting Angle
90°
Insert Screw
219833 (15IP; 3.0 Nm)
Number of Teeth
8
Coolant Through
Yes
Milling Application
End milling
Tool Exchange
PowerCard
Dia/No. of Cutting Edges
100 mm/8
Shank Type
with bore
Description
Version: Individual tool geometry ensures very smooth cutting. Exceptionally sturdy insert design for best feed rates. Indexable inserts are secured by special screws with high shear resistance. Application: For outstanding surface quality. Burr-free milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. For exact 90 deg. corners- select ap = 8 mm. To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Tool exchange: PowerCard maximum cutting depth ap max: 10 mm Overall length Ltot: 50 mm Mounting bore : 32 mm suitable indexable insert: SO.. 1205.. Pack of insert screws: 219833 15IP- 3.0 Nm
