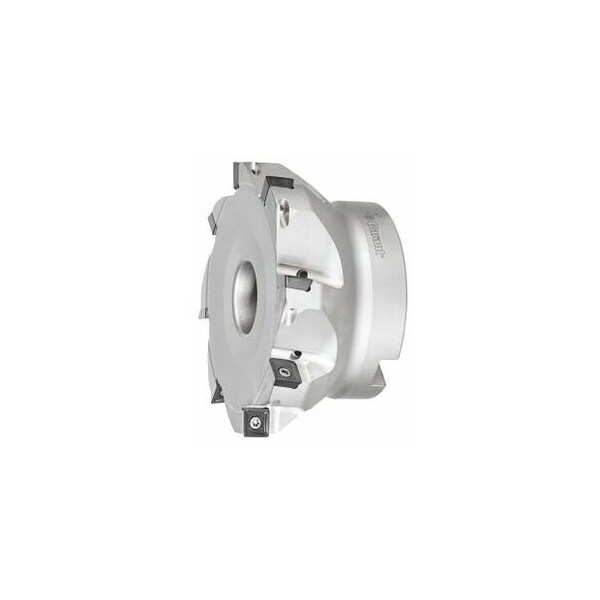

Softcut HSI Milling Cutter, Wide Pitch, with Bore, 125mm Diameter, 8 Inserts
Mfr # 214855 125/8
Zoro # G516121081
product price:Â
$
1,041.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Angle
90°
Cutting Dia.
125 mm
Insert Screw
219833 (15IP; 3.0 Nm)
Overall Length
63 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 214855 125/8
- Zoro #
- G516121081
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 125 mm
- Overall Length
- 63 mm
- Free length
- 63 mm
- Mounting Bore Dia.
- 40 mm
- Max. Cutting Depth
- 10 mm
Details
- Item
- End / face mill
- Series
- Softcut®
- Cutting Angle
- 90°
- Insert Screw
- 219833 (15IP; 3.0 Nm)
- Number of Teeth
- 8
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
- Milling Application
- End milling
- Shank Type
- with bore
- Dia/No. of Cutting Edges
- 125 mm/8
Description
Version: Individual tool geometry ensures very smooth cutting. Exceptionally sturdy insert design for best feed rates. Indexable inserts are secured by special screws with high shear resistance. Application: For outstanding surface quality. Burr-free milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. For exact 90 deg. corners- select ap = 8 mm. To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Tool exchange: PowerCard maximum cutting depth ap max: 10 mm Overall length Ltot: 63 mm Mounting bore : 40 mm suitable indexable insert: SO.. 1205.. Pack of insert screws: 219833 15IP- 3.0 Nm
