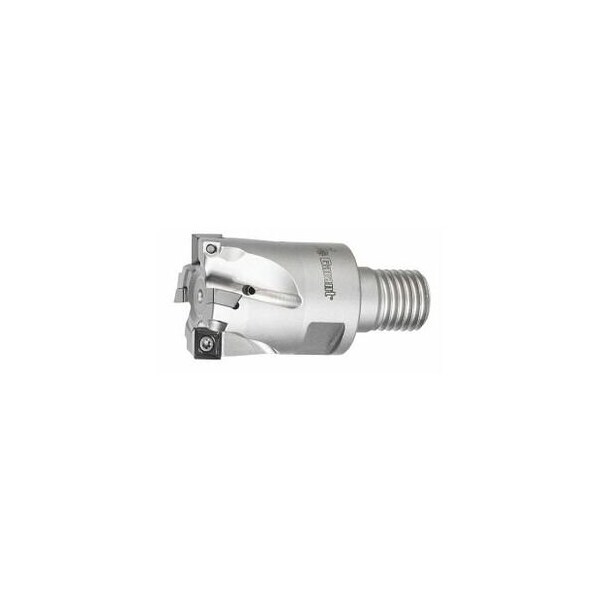

Softcut HSI Milling Cutter, with Threaded Shank, 32mm Diameter, 4 Inserts
Mfr # 214904 32/4
Zoro # G216121190
product price: $346.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Dia.
32 mm
Overall Length
40 mm
Cutting Angle
90°
Number of Teeth
4
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
214904 32/4
Zoro #
G216121190
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
32 mm
Overall Length
40 mm
Diameter 1
17 mm
Free length
40 mm
Max. Cutting Depth
6 mm
Diameter 2
28.7 mm
Details
Series
Softcut®
Item
End / face mill
Cutting Angle
90°
Number of Teeth
4
Insert Screw
219863 (8IP; 2.2 Nm)
Coolant Through
Yes
Tool Exchange
PowerCard
Shank Type
with threaded shank
Dia/No. of Cutting Edges
32 mm/4
Milling Application
End milling
Mounting Thread
M16
Description
Version: Wear-resistant heat-treated steel with corrosion-inhibiting coating. Precise indexable insert seating by use of appropriate torque. Wide and close tooth pitches for individual milling strategies. Application: Particularly suitable for machines with lower drive power and for machining at greater depths and small entry diameters. Note: To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 8IP. For exact 90 deg. corners- select ap = 6 mm. Tool exchange: PowerCard maximum cutting depth ap max: 6 mm Overall length Ltot: 40 mmD1 h6: 17 mmD2: 28.7 mm Mounting thread M: M16 suitable indexable insert: SO.. 0836..
