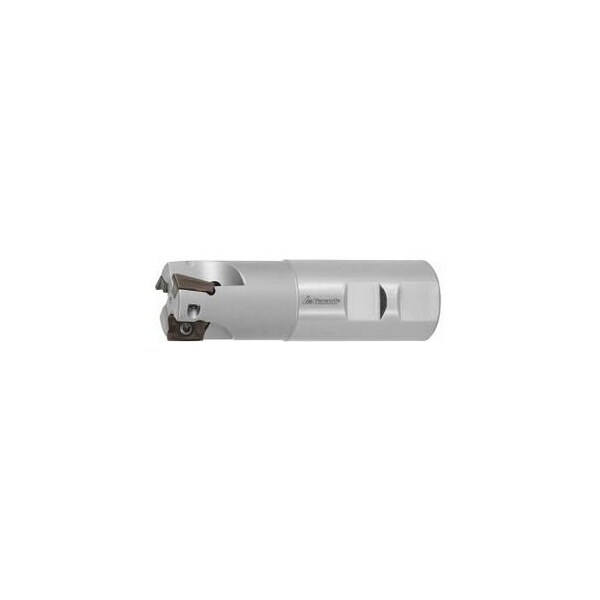

Softcut Shoulder Mill, with Weldon Flat, 25mm Diameter, 2 Inserts

Version: High precision square shoulder milling cutter with irregular pitch for very smooth cutting- very high precision and cutting power. High performance indexable square shoulder milling cutter with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Application: For face milling to large depths- also slotting. General use in all steels including stainless steels. Especially for MTC Multi Task Cutting use on the new generation of turning/milling centres MTM. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. The insert pocket must be modified when using indexable inserts with a radius greater than 3.1 mm. Cutting edgeDC: 25 mm Number of cutting edges Z: 2 Overhang L1: 44 mm Overall length Ltot: 100 mm ShankDs h6: 25 mm Circular interpolation millingDmin: 44 mm
