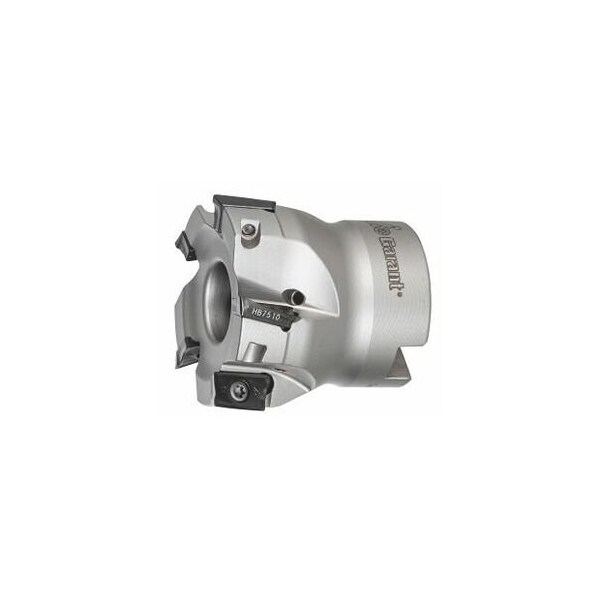

Softcut Square Shoulder Mill, with Bore, 42mm Diameter, 5 Inserts

Version: High precision indexable shoulder mill with irregular pitch for very smooth cutting- very high precision- and very high metal removal rate. New generation of high performance indexable shoulder mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Application: For shoulder milling to large depths- also slotting. General use in all steels including stainless steels. Spare part: Pack of insert screws No. 219826 8IP- 2.2 Nm. Note: The insert pocket must be modified when using indexable inserts with a radius greater than 2 mm. GARANT torque screwdriver TQ No. 211750 size 2.2- use bit No. 674252 size 8IP. Overall length Ltot: 40 mm Mounting bore : 16 mm Circular interpolation millingDmin: 81 mm Circular interpolation millingDmax: 82 mm Circular interpolation milling ap: 1.8 mm Ramping angle max: 0.47 degrees
