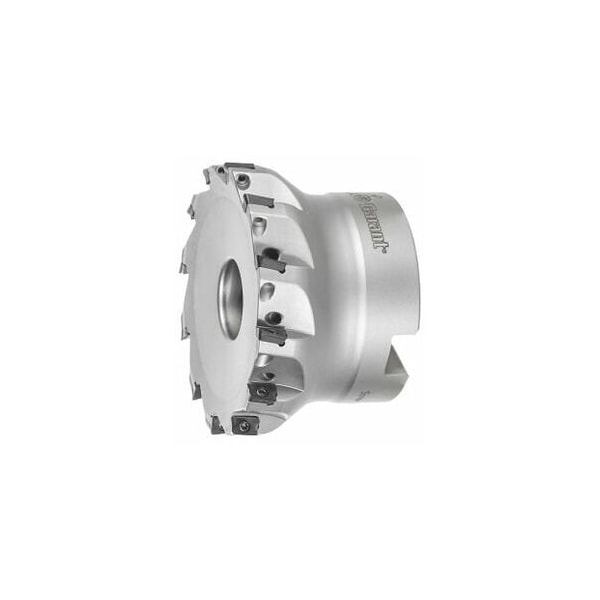

Softcut Square Shoulder Mill, with Bore, 63mm Diameter, 12 Inserts
Mfr # 215620 63/12
Zoro # G516121128
product price:Â
$
703.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
63 mm
Series
Softcut®
Overall Length
40 mm
Cutting Angle
90°
Insert Screw
219827 (6IP; 0.45 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215620 63/12
- Zoro #
- G516121128
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 63 mm
- Overall Length
- 40 mm
- Free length
- 40 mm
- Mounting Bore Dia.
- 22 mm
- Diameter 3
- 61 mm
- Ramping Length for αmax
- 59.85 mm
Details
- Item
- End / face mill
- Series
- Softcut®
- Cutting Angle
- 90°
- Insert Screw
- 219827 (6IP; 0.45 Nm)
- Ramping Angle
- 0.19°
- Shank Type
- with bore
- Number of Teeth
- 12
- Axial Rake Angle
- 11°
- Circular interpolation milling ap
- 0.8 mm
- Circular Interpolation Milling - Dmax
- 124 mm
- Circular Interpolation Milling - Dmin
- 124 mm
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
- Dia/No. of Cutting Edges
- 63 mm/12
- Fz Helix
- 0.5
Description
Version: High precision indexable shoulder mill with irregular pitch for very smooth cutting- very high precision and very high metal removal rate. New generation of high performance indexable shoulder mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Application: For shoulder milling to large depths- also slotting. General use in all steels including stainless and acid-resistant steels. Spare part: Pack of insert screws No. 219827 6IP- 0.45 Nm. Note: GARANT torque screwdriver TQ No. 211750 size 0.45- use bit No. 674252 size 6IP. The insert pocket must be modified when using indexable inserts with a radius of 2 mm. Overall length Ltot: 40 mm Mounting bore : 22 mm Circular interpolation millingDmin: 124 mm Circular interpolation millingDmax: 124 mm Circular interpolation milling ap: 0.8 mm Ramping angle max: 0.19 degrees
