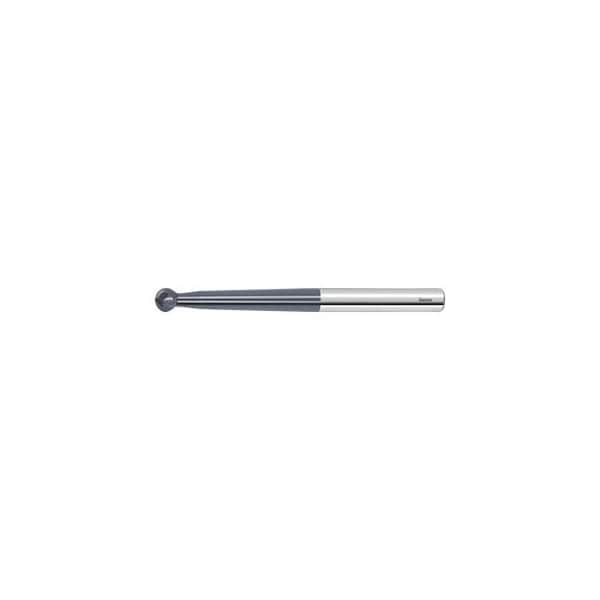

Solid Carbide Ball Nose End Mill, 260 Deg, TiAlN Coated, 8 mm
Mfr # 207176 8
Zoro # G014382168
product price:
$
249.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
8 mm
Overall Length
100 mm
Number of Flutes
2
End Mill Style
Ball
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 207176 8
- Zoro #
- G014382168
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 8 mm
- Overall Length
- 100 mm
- Length of Cut
- 7 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 7 mm
- Maximum Cutting Depth Ap Max When Copying
- 0.24 mm
- Min. Cutting Depth
- 0.01 mm
- Cutting Width Ae for Milling Operation
- 0.03×D for copy milling
- Neck Dia.
- 5.6 mm
- Corner Radius
- 4 mm
- Shank Dia.
- 8 mm
Description
Exact radius form without profile distortion. Double relief ground side clearance angle. Tolerance: Radius contour = ±0.01 mm. With enclosed angle 260 Deg. Size nominal Dia. Dc = -0.01 / -0.025 mm. Note: Ground recess after cutter length LC is conically increasing. No. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Cutter length lc: 7 mm Overhang length L1 incl. recess: 40 mm Recess Dia. D1: 5.6 mm Overall length L: 100 mm Shank Dia. Ds: 8 mm
