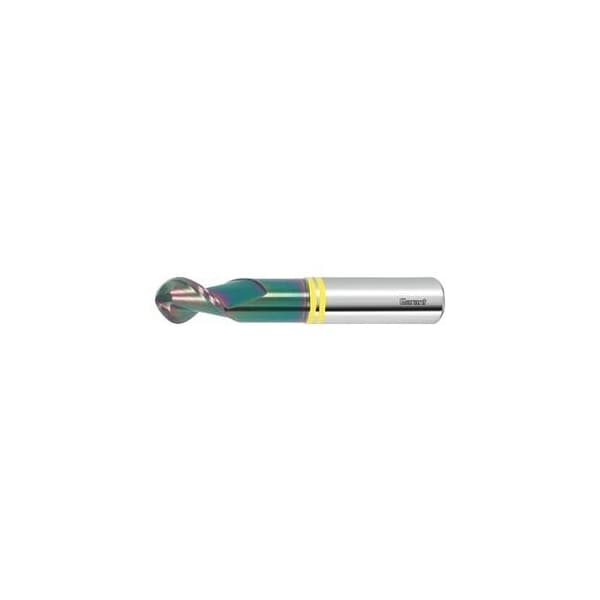

Solid Carbide Ball Nose End Mill, for Aluminum, DLC Coated, 4 mm
Mfr # 207097 4
Zoro # G014381154
product price: $73.85
/eaKey Features
Overall Length
54 mm
Milling Diameter
4 mm
Number of Flutes
2
End Mill Style
Ball
Finish
DLC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 207097 4
- Zoro #
- G014381154
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 54 mm
- Milling Diameter
- 4 mm
- Length of Cut
- 7 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 7 mm
- Min. Cutting Depth
- 0.01 mm
- Tolerance Nominal Diameter
- -3.5
- Maximum Cutting Depth Ap Max When Copying
- 0.12 mm
- Cutting Width Ae for Milling Operation
- 0.03×D for copy milling
- Shank Dia.
- 4 mm
- Neck Dia.
- 3.7 mm
- Corner Radius
- 2 mm
Description
With DLC coating sp2 of the latest generation. High precision ball nose slot drills in respect of radius Dia. and contour variations within the um range. Tolerances: radius contour = ±0.005 mm. For the highest demands on dimensional accuracy of the workpiece. Note: Successor product to No. 207095. No. of teeth Z: 2 Helix angle: 45 degrees No. of teeth Z: 2 Flute length Lc: 7 mm Overhang length L1 incl. recess: 17 mm Recess Dia. D1: 3.7 mm Overall length L: 54 mm Shank Dia. Ds: 4 mm
