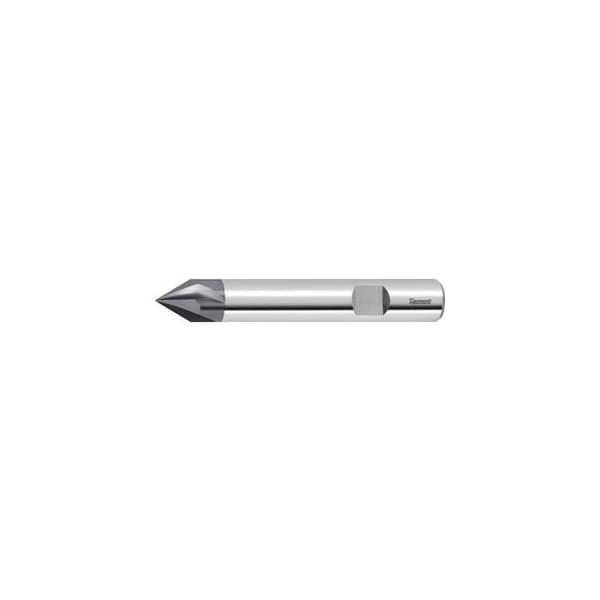

Solid Carbide Deburring Mill, 60 Deg, TiAlN Coated, 10 mm
Mfr # 208160 10
Zoro # G014423663
product price: $66.49
/eaKey Features
Type
N
Material
Carbide
Dia. (In.)
10 mm
Shank Diameter
10 mm
Overall Length
72 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
208160 10
Zoro #
G014423663
UPC #
-
Country of Origin
Germany
Dimensions
Dia. (In.)
10 mm
Shank Diameter
10 mm
Overall Length
72 mm
Tolerance Nominal Diameter
h6
Maximum Cutting Depth Ap Max When Side Milling
9.9 mm
Dimension S
9.9 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
9.9 mm
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. With special flute geometry for smooth cutting. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 4 Shank: DIN 6535 HB to h6 Chamfer mill: 30 degrees No. of teeth Z: 4 Dimension S: 9.9 mm Overall length L: 72 mm Shank Dia. Ds: 10 mm Feed fz in steel < 900 N/mm2: 0.05 mm
