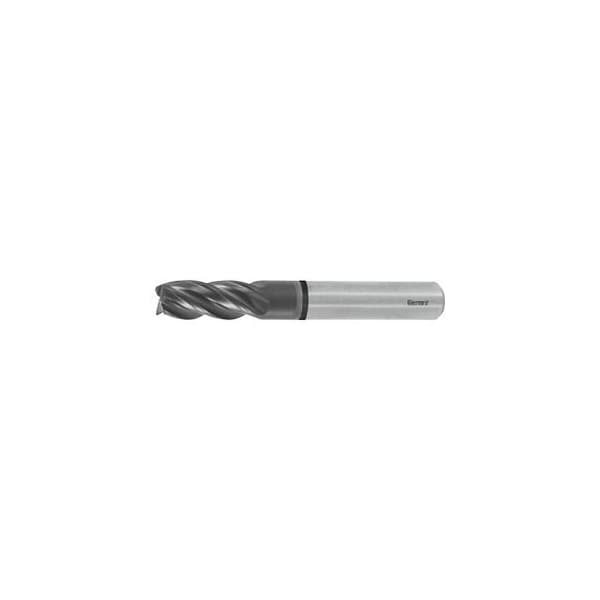

Solid Carbide End Mill, Diamond Coated, 8 mm

  • Mfr # 209713 8
  • Zoro # G414382966
product price:
$
231.99
/ea
Free Shipping & Returns

Key Features

Milling Diameter
8 mm
Overall Length
63 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
Diamond
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
209713 8
Zoro #
G414382966
UPC #
-
Country of Origin
Germany
Number of Flutes
4
End Mill Style
Chamfer
Finish
Diamond
Type of Product
End Mill
Correction Factor Fz
1.25
Shank Tolerance
h6
Corner Chamfer Angle
45 Degrees
Feed Fz For Slot Milling in GRP CRP
0.05 mm
Color Ring
black
Feed Fz For Slot Milling in Graphite
0.05 mm
Helix Angle
45 Degrees
End Mill Material
Carbide
Cutting Direction
horizontal, oblique and vertical
Shank Type
DIN 6535 HA with h6
Overall Reach
25 mm
Coolant Through
No

Dimensions

Milling Diameter
8 mm
Overall Length
63 mm
Length of Cut
19 mm
Maximum Cutting Depth Ap Max When Side Milling
19 mm
Min. Cutting Depth
0.2 mm
Cutting Width Ae for Milling Operation
Full slot cutting depth 1×D
Maximum Cutting Depth Ap Max When Slot Milling From Solid
8 mm
Tolerance Nominal Diameter
f8
Corner Chamfer Width at 45°
0.2 mm
Shank Dia.
8 mm
Neck Dia.
7.8 mm

Description

With the latest generation of crystalline diamond coating sp3, for process reliability in machining Fiber-reinforced composites, CRP, GRP, and graphite. Dynamic cutter geometry. Through-coolant: no Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA with h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 4 Flute length Lc: 19 mm Overhang length L1 incl. recess: 25 mm Recess Dia. D1: 7.8 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm
