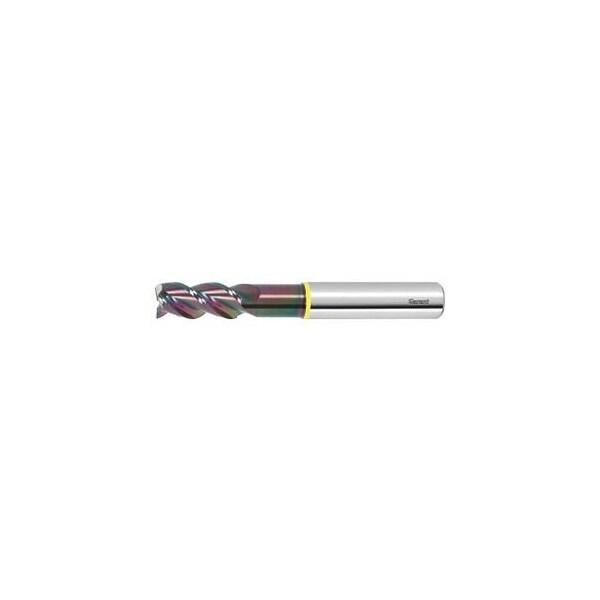

Solid Carbide End Mill, DLC Coated, 10 mm
Mfr # 202273 10
Zoro # G214384221
product price: $101.99
/ea
Free Shipping & Returns
Key Features
Overall Reach
38 mm
Neck Dia.
9.2 mm
Tolerance Nominal Diameter
h6
Shank Tolerance
h6
Maximum Cutting Depth Ap Max When Slot Milling From Solid
10 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202273 10
Zoro #
G214384221
UPC #
-
Country of Origin
Germany
Dimensions
Neck Dia.
9.2 mm
Tolerance Nominal Diameter
h6
Maximum Cutting Depth Ap Max When Slot Milling From Solid
10 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Overall Length
80 mm
Length of Cut
22 mm
Milling Diameter
10 mm
Shank Dia.
10 mm
Description
With the latest generation of DLC coating sp2. Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium components. Without 45 Deg cutting edge chamfer. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. h6 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 22 mm Overhang length L1 incl. recess: 38 mm Recess Dia. D1: 9.2 mm Overall length L: 80 mm Shank Dia. Ds: 10 mm
