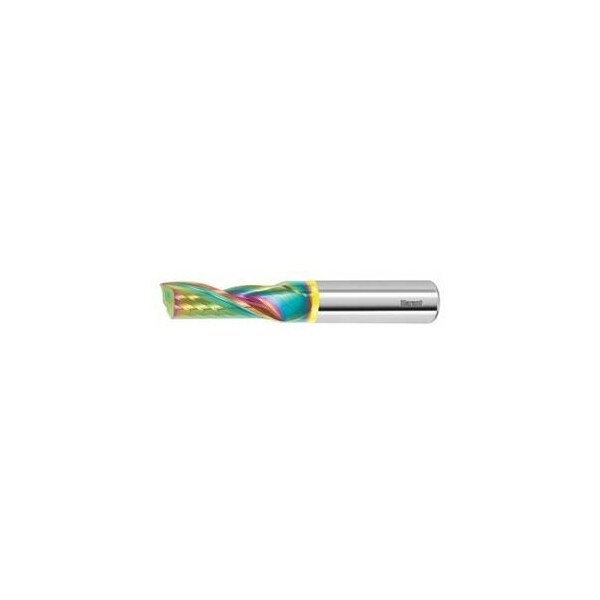

Solid Carbide End Mill, DLC Coated, 1mm
Mfr # 201045 1
Zoro # G614371845
product price:Â $41.99
/eaKey Features
Overall Length
50 mm
Number of Flutes
1
End Mill Style
Square
Finish
DLC
Length of Cut
4 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 201045 1
- Zoro #
- G614371845
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 50 mm
- Milling Diameter
- 1 mm
- Length of Cut
- 4 mm
- Shank Dia.
- 3 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 4 mm
- Cutting Width Ae for Milling Operation
- Full slot cutting depth 1×D
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 0.5 mm
- Min. Cutting Depth
- 0.01 mm
- Tolerance Nominal Diameter
- h10
Details
- Number of Flutes
- 1
- End Mill Style
- Square
- Finish
- DLC
- Cutting Direction
- horizontal, oblique and vertical
- Shank Type
- DIN 6535 HA to h6
- Type
- W
- Coolant Through
- No
- End Mill Material
- Carbide
- Helix Angle
- 26 Degrees
- Type of Product
- End Mill
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 90 Degrees
- Feed Fz For Slot Milling in Short-Chipping Aluminium
- 0.004 mm
- Color Ring
- yellow
- Correction Factor Fz
- 1.25
Description
Large flutes for unobstructed swarf evacuation. Special geometry for machining aluminium. With the latest generation of DLC coating sp2. Application: Especially for milling aluminium, plunging and contour milling. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 1 Helix angle: 26 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 1 Flute length Lc: 4 mm Overall length L: 50 mm Shank Dia. Ds: 3 mm Feed fz for slot milling in short-chipping aluminium: 0.004 mm
