Shop GARANT

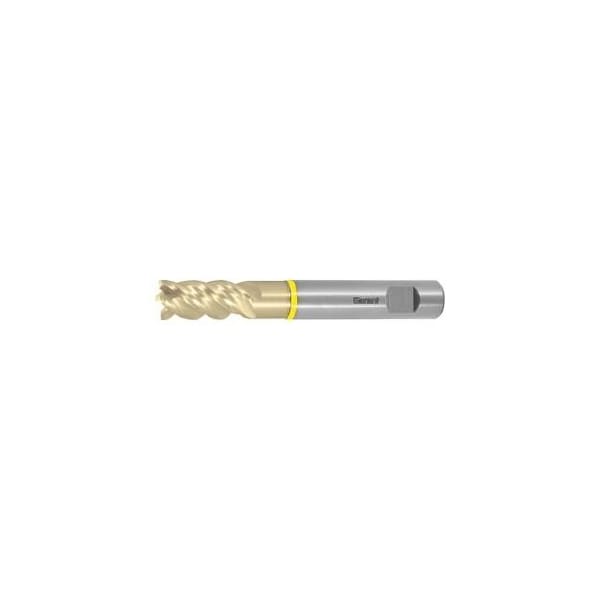

Solid Carbide End Mill for Aluminum, Coolant Through, ZOX Coated, 20 mm

  • Mfr # 202553 20

  • Zoro # G914384088

product price:
$
728.99
/ea
Free Shipping & Returns

Key Features

Milling Diameter
20 mm
Overall Length
104 mm
Finish
ZOX
End Mill Cutting Type
HPC
Length of Cut
40 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
202553 20
Zoro #
G914384088
UPC #
-
Country of Origin
Germany
Finish
ZOX
End Mill Cutting Type
HPC
Helix Angle
45 Degrees
Shank Type
DIN 6535 HB to h6
Number of Flutes
4
Cutting Direction
horizontal, oblique and vertical
End Mill Material
Carbide
Coolant Through
Yes
Type
W
End Mill Style
Chamfer
Overall Reach
52 mm
Correction Factor Fz
3
Corner Chamfer Angle
45 Degrees
Color Ring
yellow
Shank Form
HB
Feed Fz For Slot Milling in Short-Chipping Aluminium
0.12 mm
Type of Product
End Mill
Shank Tolerance
h6

Description

Sturdy roughing end mills without knuckle profile. With strong core, special chip breaker recesses and large polished flutes. Application: For roughing milling with high demands on the component surface. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 4 Flute length Lc: 40 mm Overhang length L1 incl. recess: 52 mm Recess Dia. D1: 19 mm Overall length L: 104 mm Shank Dia. Ds: 20 mm
