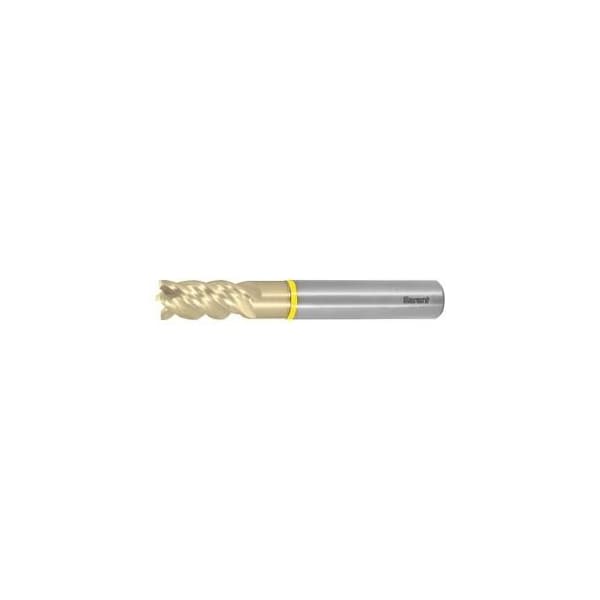

Solid Carbide End Mill for Aluminum, Coolant Through, ZOX Coated, 3 mm

  • Mfr # 202553 3
  • Zoro # G914384125
product price:
$
86.99
/ea

Key Features

Overall Length
57 mm
Milling Diameter
3 mm
Finish
ZOX
Corner Chamfer Angle
45 Degrees
Color Ring
yellow
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
202553 3
Zoro #
G914384125
UPC #
-
Country of Origin
Germany
Finish
ZOX
Corner Chamfer Angle
45 Degrees
Color Ring
yellow
Shank Tolerance
h6
Shank Form
HA
Feed Fz For Slot Milling in Short-Chipping Aluminium
0.035 mm
Type of Product
End Mill
Correction Factor Fz
3
Coolant Through
Yes
Helix Angle
45 Degrees
Number of Flutes
4
Overall Reach
10 mm
End Mill Cutting Type
HPC
Type
W
End Mill Style
Chamfer
Cutting Direction
horizontal, oblique and vertical
Shank Type
DIN 6535 HA to h6
End Mill Material
Carbide

Dimensions

Overall Length
57 mm
Milling Diameter
3 mm
Tolerance Nominal Diameter
f8
Corner Chamfer Width at 45°
0.1 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1.5 mm
Min. Cutting Depth
0.1 mm
Maximum Cutting Depth Ap Max When Side Milling
6 mm
Shank Dia.
6 mm
Length of Cut
6 mm
Neck Dia.
2.7 mm

Description

Sturdy roughing end mills without knuckle profile. With strong core, special chip breaker recesses and large polished flutes. Application: For roughing milling with high demands on the component surface. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 4 Flute length Lc: 6 mm Overhang length L1 incl. recess: 10 mm Recess Dia. D1: 2.7 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
