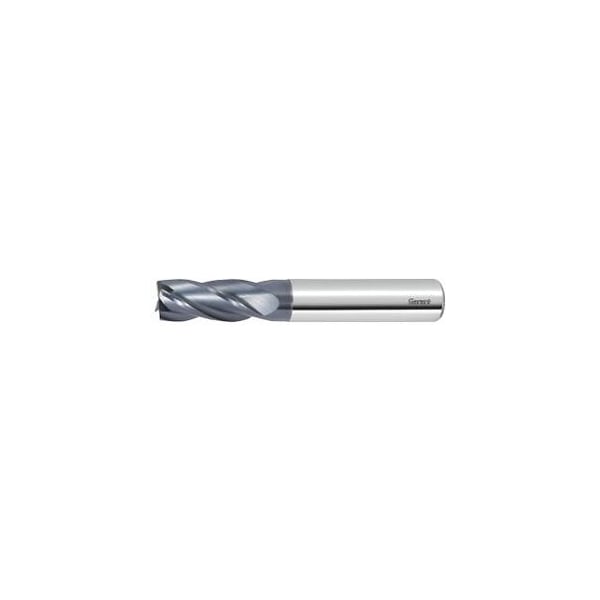

Solid Carbide End Mill, TiAlN Coated, 3 mm
Mfr # 202720 3
Zoro # G614384876
product price:Â $30.29
/eaKey Features
Overall Length
38 mm
Milling Diameter
3 mm
Number of Flutes
4
End Mill Style
Chamfer
Length of Cut
12 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202720 3
- Zoro #
- G614384876
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 38 mm
- Milling Diameter
- 3 mm
- Length of Cut
- 12 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 1.5 mm
- Tolerance Nominal Diameter
- e8
- Maximum Cutting Depth Ap Max When Side Milling
- 12 mm
- Corner Chamfer Width at 45°
- 0.04 mm
- Min. Cutting Depth
- 0.04 mm
- Shank Dia.
- 3 mm
- Neck Dia.
- 2.8 mm
Description
Double relief ground side clearance angle. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 12 mm Overhang length L1 incl. recess: 17 mm Recess Dia. D1: 2.8 mm Overall length L: 38 mm Shank Dia. Ds: 3 mm
