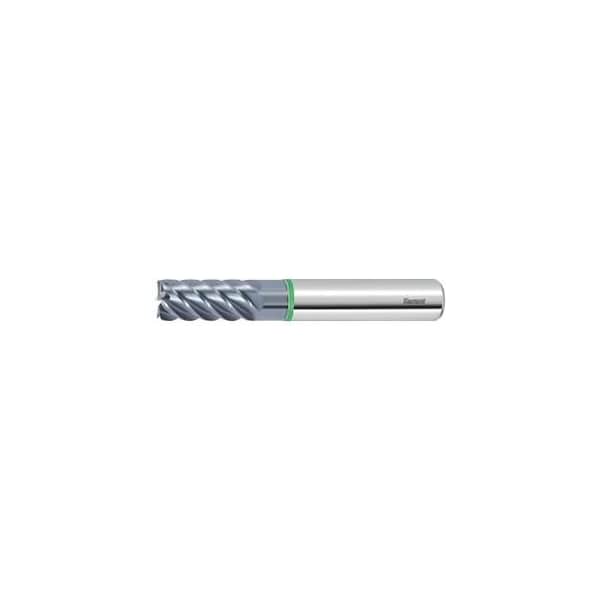

Solid Carbide End Mill, TiAlN Coated, 6 mm
Mfr # 203440 6
Zoro # G114382242
product price: $45.89
/eaKey Features
Cutting Width Ae for Milling Operation
0.1×D for side milling
Shank Tolerance
h6
Type of Product
End Mill
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Corner Chamfer Angle
45 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203440 6
Zoro #
G114382242
UPC #
-
Country of Origin
Germany
Dimensions
Cutting Width Ae for Milling Operation
0.1×D for side milling
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Min. Cutting Depth
0.05 mm
Overall Length
57 mm
Shank Dia.
6 mm
Milling Diameter
6 mm
Length of Cut
13 mm
Neck Dia.
5.8 mm
Corner Chamfer Width at 45°
0.05 mm
Tolerance Nominal Diameter
e8
Description
High stability and extremely smooth cutting action due to at least 6 teeth. Double relief ground clearance angle. Application: For peripheral milling as a finishing operation. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 6 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 No. of teeth Z: 6 Flute length Lc: 13 mm Overhang length L1 incl. recess: 18 mm Recess Dia. D1: 5.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
