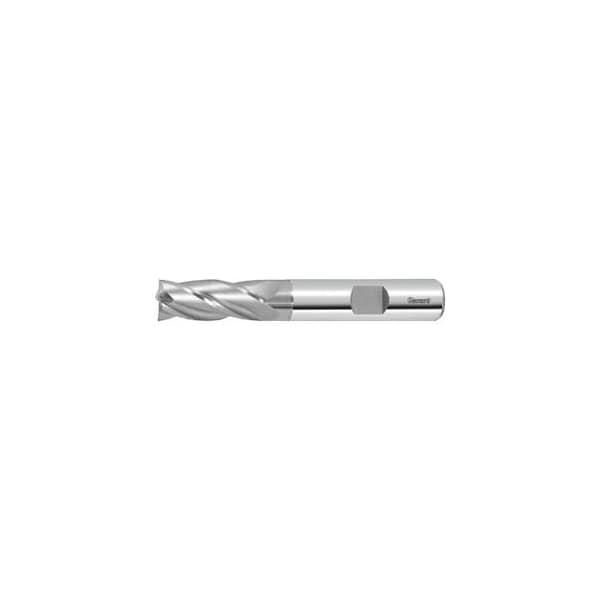

Solid Carbide End Mill, Uncoated, 10 mm
Mfr # 202640 10
Zoro # G614384074
product price:Â
$
101.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
10 mm
Overall Length
73 mm
Number of Flutes
4
End Mill Style
Chamfer
Length of Cut
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202640 10
- Zoro #
- G614384074
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- uncoated
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.05 mm
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.06 mm
- Correction Factor Fz
- 1.25
- Shank Form
- HB
- Color Ring
- without
- Type of Product
- End Mill
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 45 Degrees
- Coolant Through
- No
- Shank Type
- DIN 6535 HB to h6
- Helix Angle
- 30 Degrees
- Type
- N
- Overall Reach
- 30 mm
- End Mill Material
- Carbide
- Cutting Direction
- horizontal, oblique and vertical
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.06 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.05 mm
Description
Double relief ground side clearance angle. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 25 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 9.8 mm Overall length L: 73 mm Shank Dia. Ds: 10 mm
