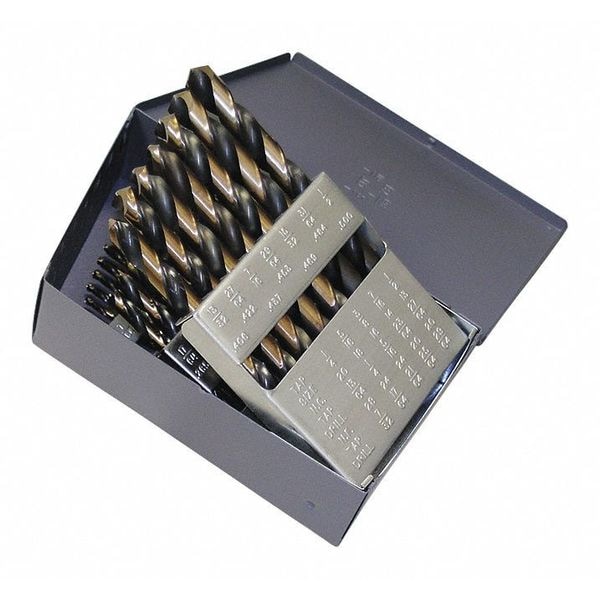

29PC 135 Degree Heavy-Duty Jobber Length Drill Set Cle-Line 1879 Black & Gold HSS 1/16-1/2x1/64
Mfr # C18122
Zoro # G7274149
product price:
$
139.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C18122
- Zoro #
- G7274149
- UPC #
- 697334181224
- Country of Origin
- United States
Dimensions
- Shank Dia.
- 1/6 in
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Drill Bit Dimension Type
- Fractional Inch
- Depth:Dia. Ratio
- 4xD
- Depth x Dia. Ratio
- 4xD
- Drill Length Class
- Jobber-Length
- Largest Drill Bit Size
- 1/2 in
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Smallest Drill Bit Size
- 1/16 in
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Wire Rope Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Description
The CLE-LINE C18122 is manufactured for use with fractional-inch bit sizes (1/16 in to 1/2 in). The bits have a split point tip and are rated for drilling cast iron and steel materials (ISO K, N, and P). The set includes sizes ranging from 1/16 inch to 1/2 inch, with varying lengths up to 6 inches. All bits are jobber-length with two-flute spiral design and right-hand spiral direction. The drill bits conform to ASME B94.11M-1993 (as specified by the manufacturer) and come housed in a metal drill index.
Key Features:
- 29-piece set with sizes from 1/16" to 1/2" by 64ths
- Reduced shank diameter of 1/6 inch (specification for fit with compatible applications)
- High-speed-steel construction (material: high-speed steel)
- Split-point tip with a 135-degree point angle (split-point tip angle)
- Jobber-length overall dimensions of 1 7/8 in to 6 in
- Two-flute spiral design with helix angles of 21° to 34°
- Metal drill index included for organization and storage
- Rated for drilling cast iron and steel materials (ISO K, N, and P)
- Right-hand cutting and right-hand spiral direction
