Shop GARANT

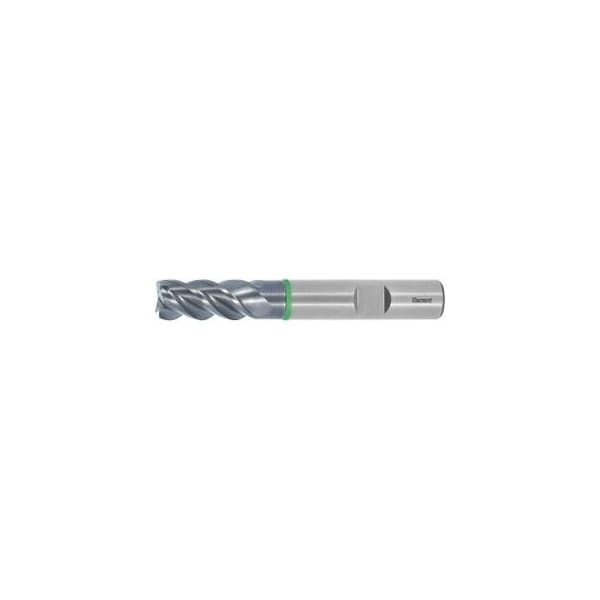

Solid Carbide MTC End Mill, AlCrN Coated, 4 mm

  • Mfr # 203061 4
  • Zoro # G914383883
product price:
$
56.65
/ea

Key Features

Milling Diameter
4 mm
Overall Length
57 mm
End Mill Cutting Type
MTC
Finish
AlCrN
Length of Cut
11 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
203061 4
Zoro #
G914383883
UPC #
-
Country of Origin
Germany
End Mill Cutting Type
MTC
Finish
AlCrN
Type
N
End Mill Style
Chamfer
Helix Angle
45 Degrees
Number of Flutes
4
End Mill Material
solid carbide
Overall Reach
17 mm
Shank Type
DIN 6535 HB to h6
Coolant Through
No
Cutting Direction
horizontal, oblique and vertical
Correction Factor Fz
2
Feed Fz For Side Milling in Steel < 900 N/mm2
0.058 mm
Shank Tolerance
h6
Type of Product
End Mill
Color Ring
green
Corner Chamfer Angle
45 Degrees
Feed Fz For Side Milling in Steel < 900 N/mm2
0.058 mm

Description

For roughing and finishing up to 1.5xD into solid material at very high feed rates with smooth cutting action. For cutting force reduction and better surface quality due to 45 Deg helix. Improved coating for a further reduction in cutting force combined with increased tool life. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 4 Flute length Lc: 11 mm Overhang length L1 incl. recess: 17 mm Recess Dia. D1: 3.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
